OBDSTAR MS50 Professional Motorcycle, ATV, UTV & Snowmobile Diagnostic Scanner Available in Lahore, Islamabad & across Pakistan
The OBDSTAR MS50 is a professional motorcycle diagnostic scanner designed for workshops and motorcycle technicians. Buy the OBDSTAR MS50 UTV Snowmobile Diagnostic Scanner in Lahore from AM Auto Tools with 1 year warranty and setup support, delivered to Islamabad, Rawalpindi, Karachi and across Pakistan.
About this item
- Read and clear diagnostic trouble codes
- Complete system diagnosis
- Live data and data-stream analysis
- Active tests and actuator testing
- Automatic vehicle scanning
- Automatic VIN recognition
- ECU settings and adaptations
- Control-module programming and coding
- Instrument-cluster coding
- Maintenance-light reset
- Tire Pressure Monitoring System functions
- ABS control-unit settings
- CO adjustment
- Idle-speed adjustment
- Air–fuel ratio reset
- EOL mode
- Transmission-memory reset
- Clear control-module memory
- Record and play back real-time data
- Text, waveform and instrument-style data display
- Diagnostic socket location guidance
- Technical bulletins and fault guidance
- Operating system: Android 5.1.1
- Processor: RK3128 quad-core ARM Cortex-A7
- Display: 5-inch capacitive touchscreen
- Resolution: 800 × 480
- Battery: 2600mAh rechargeable lithium-polymer battery
- Expandable storage: Supports up to 32GB MicroSD card
- Wi-Fi: Supported
- Weight: Approximately 700g
- Dimensions: 198 × 115 × 31mm
- Operating temperature: -20°C to 55°C
- Storage temperature: -20°C to 70°C
Technical details
| Model | OBDSTAR MS50 Professional Motorcycle, ATV, UTV & Snowmobile Diagnostic Scanner |
|---|---|
| Category | Diagnostic Tools |
| Warranty | 1 year |
Compare with similar items
| OBDSTAR MS50 Professional Motorcycle, ATV, UTV & Snowmobile Diagnostic ScannerThis item |  ThinkCar T391 2026 12Volts (Optional 24+ EV ) Brand New Professional Scanner |  THINKCAR VENU VT5 Intelligent Diagnostic & TPMS Programming Tool |  THINKCAR D200 LIFE TIME UPDATE CAN-FD DOIP CAR SCANNER | |
|---|---|---|---|---|
| Price | Rs 185,000 | Rs 375,000 | Rs 135,000 | Rs 30,000 |
| Customer rating | 0 | 4 | 0 | 0 |
| Reviews | 0 | 25 | 0 | 0 |
| Part number | — | — | — | — |
| Warranty | 1 year | 2 year | 1 year | 1 year |
About the OBDSTAR MS50 UTV Snowmobile Diagnostic Scanner
description
The OBDSTAR MS50 is a professional motorcycle diagnostic scanner designed for workshops and motorcycle technicians. It supports motorcycles, ATVs, UTVs and snowmobiles from major Asian, European, Chinese and American manufacturers.
Workshops looking for the OBDSTAR MS50 UTV Snowmobile Diagnostic Scanner in Lahore can order it from our shop with setup guidance and delivery across Pakistan.
Powered by Android 5.1.1, the MS50 provides complete system diagnostics, including fault-code reading and clearing, live data, active tests, automatic scanning, coding, ECU settings, maintenance functions and more. Wi-Fi updates, data recording and remote technical assistance make it a complete solution for professional motorcycle diagnostics.
Available in MS50 STD and MS50 BASIC configurations. Vehicle coverage and advanced functions vary by configuration.

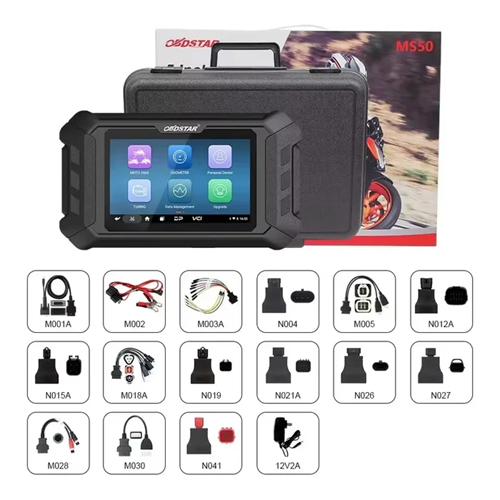

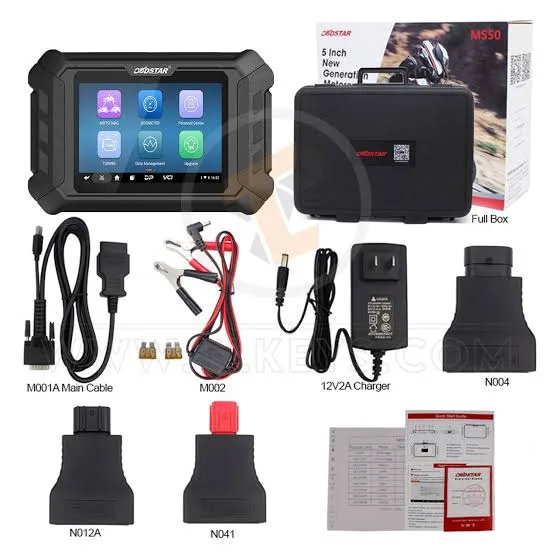

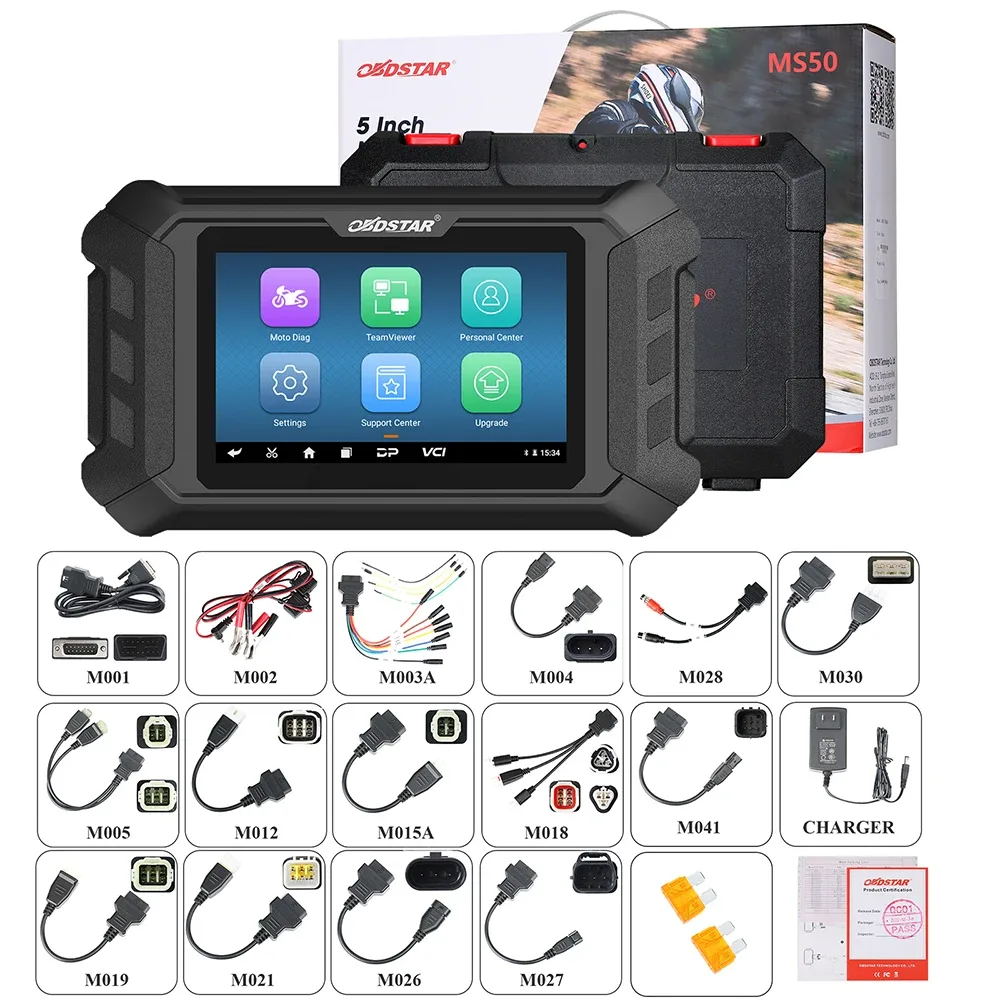

OBDSTAR MS50 Professional Motorcycle Diagnostic Scanner
The OBDSTAR MS50 is a new-generation intelligent diagnostic scanner developed for motorcycles, snowmobiles, ATVs and UTVs. Its industrial-grade construction, portable design and intuitive interface make it an excellent choice for professional motorcycle workshops.

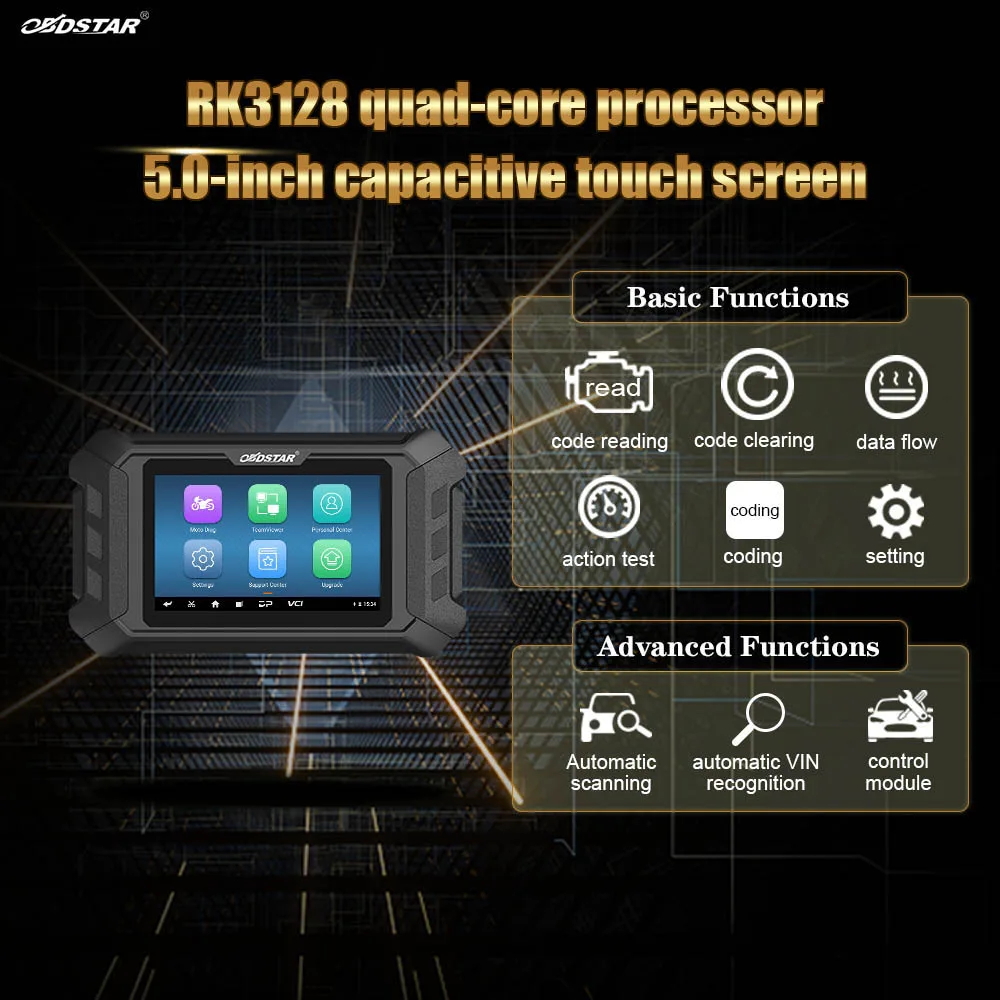

The device uses an RK3128 quad-core processor and features a 5-inch capacitive touchscreen. It delivers complete diagnostic capabilities while providing convenient Wi-Fi updates, data recording and remote technical support.
The OBDSTAR MS50 is available in two configurations:
Supported brands, systems and advanced functions may vary between configurations. Please check the latest official Function Manual before purchasing.

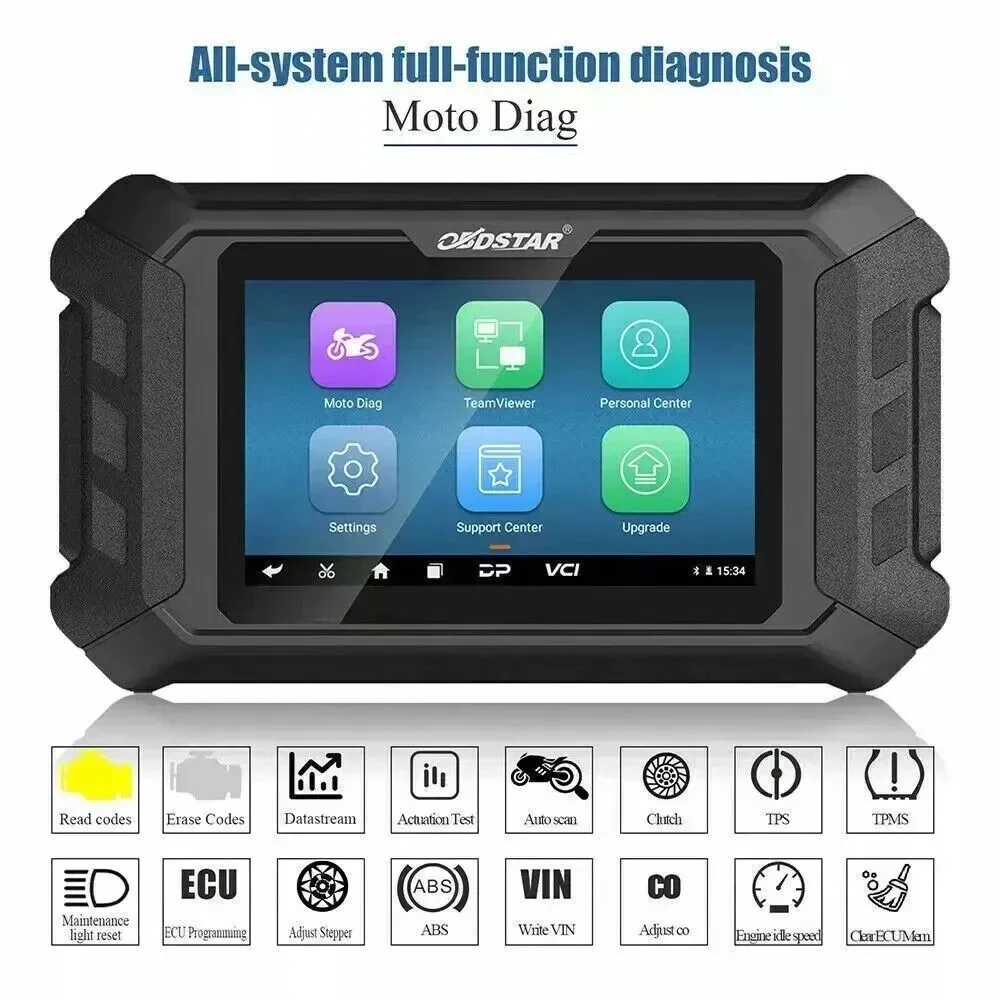

Main diagnostic functions
User-friendly operation
The MS50 uses the Android 5.1.1 operating system and offers simple, intuitive menu navigation. Technicians can quickly select vehicle brands, systems and diagnostic functions without complicated operating procedures.
Record and analyse live data
Real-time data streams can be recorded and played back whenever required. The scanner displays live data in multiple formats, including:
These display options make it easier to identify sensor problems, abnormal readings and component faults.
Wi-Fi updates and remote assistance
Connect the MS50 to the internet through Wi-Fi for convenient one-click software updates. Its remote-assistance function also allows OBDSTAR technical personnel to provide support when required.
Motorcycle, ATV, UTV and snowmobile coverage
Asian brands
AEON, Bajaj, Benelli DSK, Hartford, Hero, Honda, Hyosung, Kawasaki, Kymco, PGO, Royal Enfield, Suzuki, SYM, TVS, XGJAO and Yamaha.
European brands
Aprilia, Benelli, HM, Husqvarna, KTM, Piaggio, Royal Alloy and Vespa.
Chinese brands
China ABS, China Engine, CFMOTO, Haojue, Linhai, Lifan, QJ Benelli, Shineray, WYHonda, XDHonda and Zontes.
American brands
Selected Acellera and Victory models.
Coverage varies according to the MS50 STD or MS50 BASIC configuration and installed software.
Cluster recalibration support
Selected cluster-recalibration functions are supported for KTM models, depending on the purchased configuration and software coverage.
Cluster programming by dump
Selected cluster-programming and recalibration functions are available for the following brands:
European brands
Aprilia, Benelli, BMW, Cagiva, Ducati, Generic, KTM, MV Agusta, Peugeot, Piaggio and Triumph.
American brands
Buell and Harley-Davidson.
Asian brands
Honda, Kawasaki, Suzuki and Yamaha.
Chinese brands
Tuning support
Selected tuning functions are available for supported Honda models. Exact coverage depends on the software configuration and vehicle model.
Special and advanced functions
The MS50 offers brand-specific service and advanced diagnostic functions for selected models from:
Available functions depend on the vehicle, model year, system and MS50 configuration.
Technical specifications
Important coverage notice
The OBDSTAR MS50 is available in STD and BASIC configurations. Diagnostic coverage, supported brands and special functions differ between packages. Always check the latest official coverage list or contact AM Auto Tools before ordering.
