Description

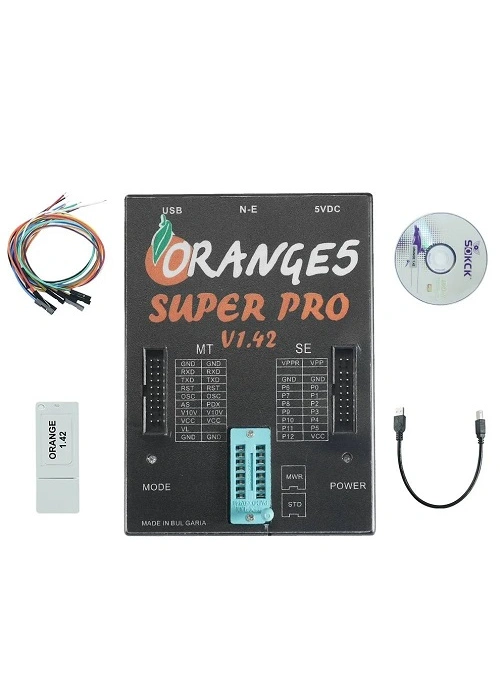

Orange5 Super Pro V1.42 is a professional-grade memory and microcontroller programmer designed for advanced automotive electronics work, including ECU repair, dashboard processing, immobilizer systems, and airbag modules. Its standout capability is a built-in macro language engine, allowing users to create or modify protocols for new microcontrollers—making it highly adaptable for evolving vehicle electronics.
Software Details
| Feature | Specification |
|---|---|
| Software Version | Orange5 Super Pro V1.42 Full Function |
| Operating System | Windows 7 / Windows 10 (32/64-bit) |
| Languages | English, Russian |
| Dongle Requirement | Must use V1.42 dongle with V1.42 software |
| Upgrade | Software upgrade only (firmware must NOT be updated) |
Core Technical Capabilities
- Universal EEPROM programming via ZIF16 socket
- Built-in 32-bit virtual machine for protocol execution
- Adjustable voltages:
- Supply Voltage: 2.0 V – 5.0 V
- Programming Voltage: 2.0 V – 21.0 V
- High-speed bidirectional pin drivers (2.0 V – 5.0 V)
- Waveform generator up to 24 MHz
- USB powered (USB 2.0/3.0)
- Over-current & over-voltage protection
- Works with USB + optional external power for heavy loads
Supported Communication Interfaces
- I²C
- SPI
- MicroWire
- JTAG
- UART
- BDM
- ISO7816
- K-LINE (via adapter)
- CAN (via adapter)
Orange 5 1.42 Adds More Ecu Mcu List Program:
