Description

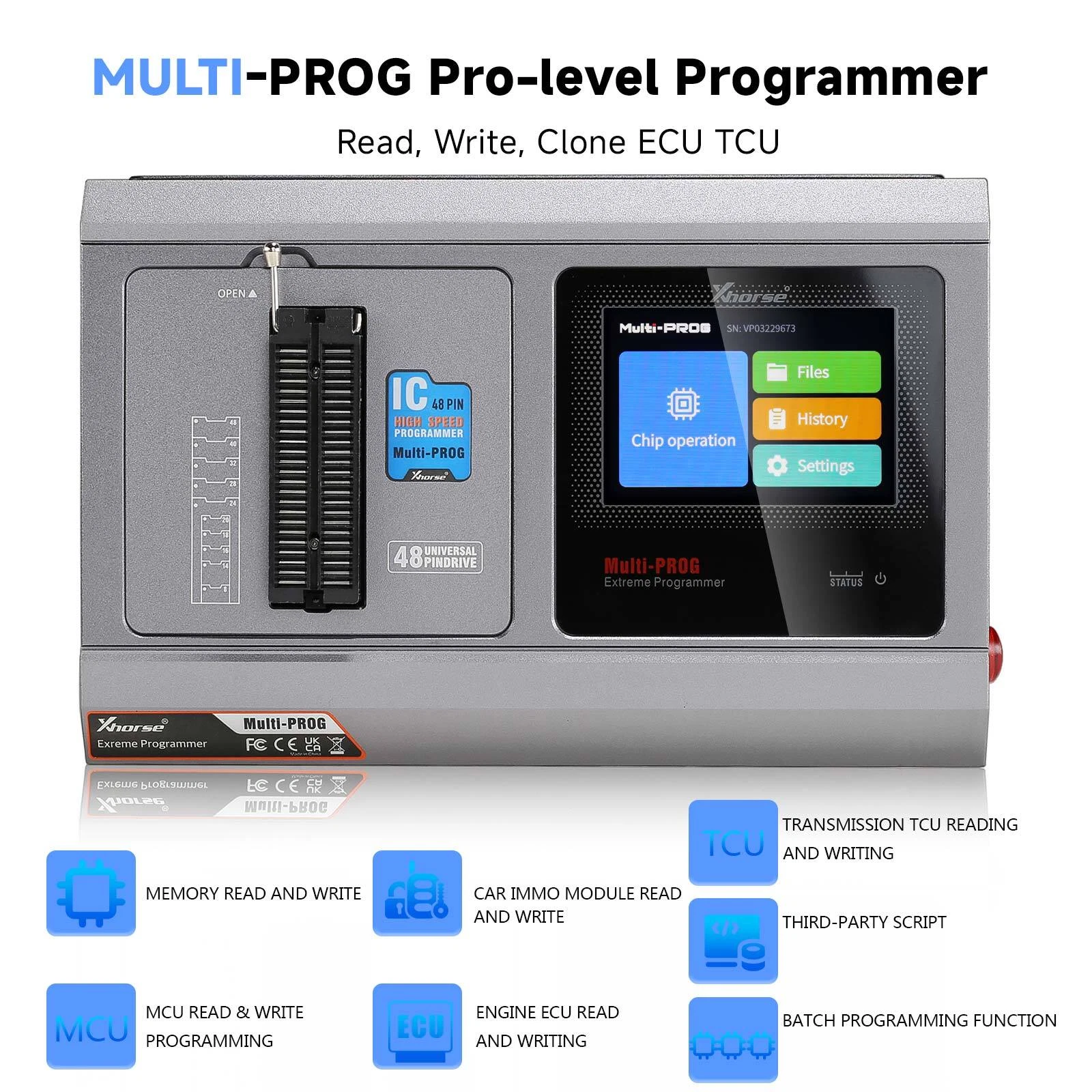

The XDMPG0GL Multi-Prog from Xhorse is a next-generation professional ECU, TCU, MCU, and immobilizer programming platform. Designed as the upgraded successor to VVDI Prog, Multi-Prog delivers faster processing, broader protocol coverage, and powerful cloning/engineering capabilities for modern vehicle electronics. Built on an embedded Linux system with FPGA acceleration, it provides stable, high-speed communication and supports advanced chip-level operations required by ECU repair labs, tuning workshops, and automotive locksmith professionals.
Top Reasons to Choose Multi-Prog
- Built-in Update System – Keeps firmware and protocols continuously up to date.
- High-Speed USB Communication – Automatic connection with reliable data transfer.
- Smart Operation Mode – Displays possible causes of errors for easier diagnostics.
- Reserved Expansion Ports – Ready for future hardware updates and add-ons.
- Self-Test Function – Quickly verifies tool health before operation.
- USB-Powered with Smart Detection – Prompts when auxiliary power is required.
- Free BMW ISN Reading – Includes ongoing updates for NEC, MPC, Infineon chips.
- FREE MQB48 AKL License Included – Ideal for advanced key-learning scenarios.
Hardware Specifications
| Feature | Specification |
|---|---|
| Operating System | Embedded Linux |
| Processor | ZYNQ7020 Dual-Core Cortex-A9 + FPGA |
| Memory | 256MB ×2 DDR + 64MB NOR Flash |
| Display | 3.5-inch Integrated Screen |
| Input Voltage | 15V / 4A |
| Working Current | 300mA @ 14V |
| Working Temperature | -20°C to 50°C |
| Storage Temperature | -30°C to 65°C |
| Interfaces | USB / RJ45 |
| Dimensions | 233 × 150 × 54 mm |
Advanced Engineering Capabilities
- ECU & TCU cloning for module replacement
- Engine data calculation and modification
- Third-party plug-in expansion support
- Custom data processing development
- Secure chip-level access for repair environments
Supported Work Modes
| Mode | Application |
|---|---|
| Bench Mode | Direct ECU connection without vehicle |
| Boot Mode | Deep recovery & engineering access |
| OBD Mode | Diagnostic-port programming (via adapters) |
| MCU Mode | Chip-level programming |
| EEPROM Mode | Memory repair & cloning |

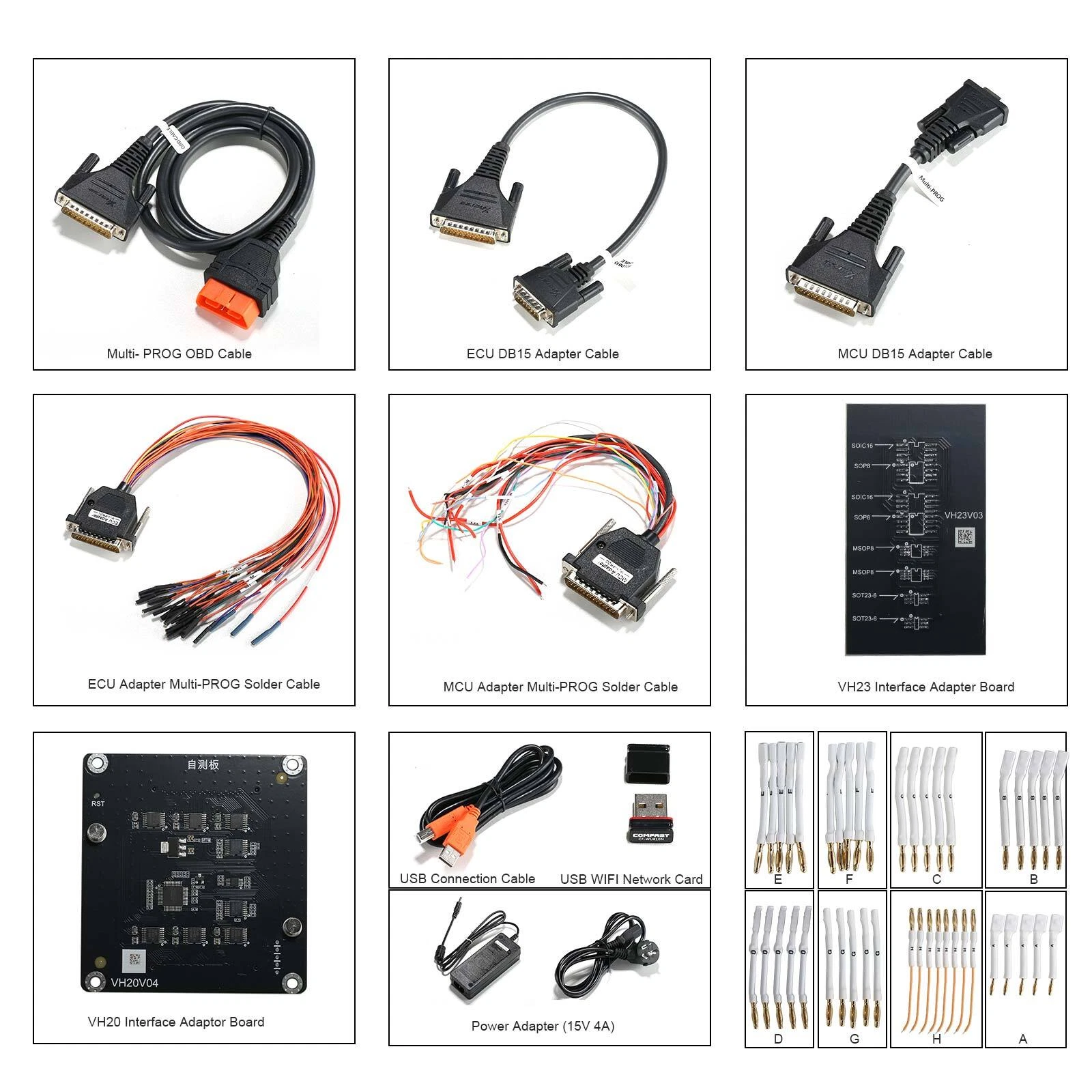

Package Contents
- Main Unit with VH13 Adapter
- Power Adapter & Power Cable
- USB Communication Cable
- OBD Cable
- MCU DB15 Cable
- ECU DB15 Cable
- Dedicated MCU & ECU Harness Cables
- VH20 & VH24 Interface Adapter Boards
- Replacement Harness Plug Set (5 pcs)
