Autel MaxiIM IM508 Perfect Advanced IMMO & Key Programming + Scanner Tool
Autel MaxiIM IM508 Perfect Advanced IMMO & Key Programming + Scanner Tool
Autel MaxiIM IM508 Perfect Advanced IMMO & Key Programming + Scanner Tool
Autel MaxiIM IM508 Perfect Advanced IMMO & Key Programming + Scanner Tool
Autel MaxiIM IM508 Perfect Advanced IMMO & Key Programming + Scanner Tool
Autel MaxiIM IM508 Perfect Advanced IMMO & Key Programming + Scanner Tool
1/6

Autel MaxiIM IM508 Perfect Advanced IMMO & Key Programming + Scanner Tool Available in Lahore, Islamabad & across Pakistan

MaxiIM IM508 is a fast, easy-to-use, and ultraportable IMMObilizer and key programming device. Buy the Autel MaxiIM IM508 Key Programming + Scanner Tool in Lahore from AM Auto Tools with 1 year warranty and setup support, delivered to Islamabad, Rawalpindi, Karachi and across Pakistan.


-17%Rs 290,000
Was: Rs 350,000You save Rs 60,000

About this item

  • Powerful Cortex-A9 processor
  • 7Inch 1024×600 LCD capacitive touchscreen
  • Internal reliable 32GB Memory
  • Android Operating System for fast boot-up and multitasking
  • Powerful combination of key programming/all system diagnostics/advanced maintenance services
  • Smart Mode for guided and automated key learning
  • Expert Mode for advanced key learning
  • Read PIN/CS (all key lost) , key generation, key learning, remote learning
  • IMMO ECU reset/adaptation, refresh/coding
  • Transpronder read/write, EEPROM/MCU read/write
  • Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
  • Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
  • Operating System:AndroidTM 4.4.4
  • Processor:Cortex-A9 processor (1.6 GHz)
  • Memory:32GB
  • Display:7-inch LCD capacitive touchscreen with 1024×600 resolution

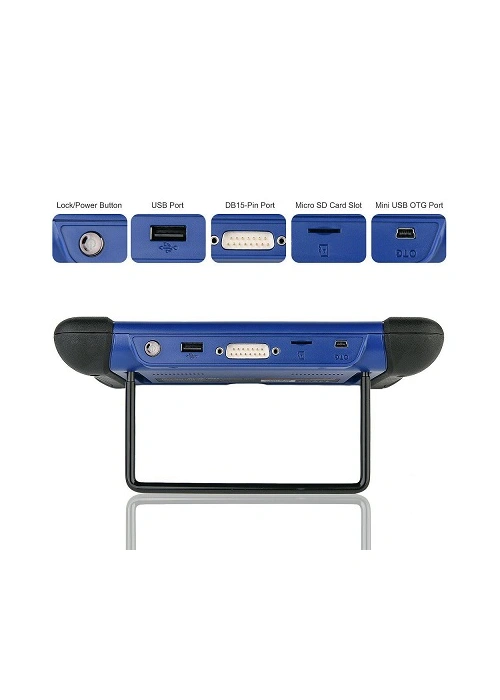

  • Connectivity:Mini USB 2.0,USB 2.0,Wi-Fi,Micro SD card (supports up to 32GB)
  • Sensors:Ambient light sensor for brightness auto changing
  • Audio Input / Output:Input: N/A,Output: buzzer
  • Power and Battery:3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
  • Tested Battery Life:Around 4.5 hours of continuous use
  • Battery Charging Input:5 V/1.5 A
  • Power Consumption:500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
  • Operating Temp:0 to 50°C (32 to 122°F)
  • Storage Temp:-20 to 60°C (-4 to 140°F)
  • Operating Humidity:5% – 95% non-condensing
  • Net Weight:788 g (2.42 lb.)
  • 1XAAC001 – MED17 Cable
  • 1XKIA-20 Adaptor
  • 1XMazda-17 Adaptor
  • 1XMaxiIM IM508 Tablet
  • 1XCarrying Case
  • 1XQuick guide
  • 1XHonda-3 Adaptor
  • 1XKIA-10 Adaptor
  • 1XXP200 Key Programmer
  • 1XUSB External Power Adapter
  • 1XMain cable
  • 1XMini USB Cable

Technical details

ModelAutel MaxiIM IM508 Perfect Advanced IMMO & Key Programming + Scanner Tool
Part numberKP-004
Key featuresAutel MaxiIM IM508 is combining powerful immobilizer and key programming capabilities with advanced automotive diagnostics and service functions.Toyota smart key all key lost can m
CategoryKey Programmer
Warranty1 year

Compare with similar items

Autel MaxiIM IM508 Perfect Advanced IMMO & Key Programming + Scanner ToolThis item
Autel G-Box3 Automotive Key Programmer for Toyota- Mercedes-Benz All Keys Lost SolutionXTOOL X100 PADS key Programmer + Car scanner XTOOL X100 PAD Elite2 key programmer
PriceRs 290,000Rs 45,000Rs 180,000Rs 280,000
Customer rating★★★★★★★★★★ 0★★★★★★★★★★ 0★★★★★★★★★★ 0★★★★★★★★★★ 0
Reviews0000
Part numberKP-004AM1042AM1062AM1061
Warranty1 year1 year1 year1 year

About the Autel MaxiIM IM508 Key Programming + Scanner Tool

Autel MaxiIM IM508 Perfect Advanced IMMO Key Programming + Scanner Tool

If you need the Autel MaxiIM IM508 Key Programming + Scanner Tool in Lahore, our team can confirm it suits your vehicles and work before you buy.

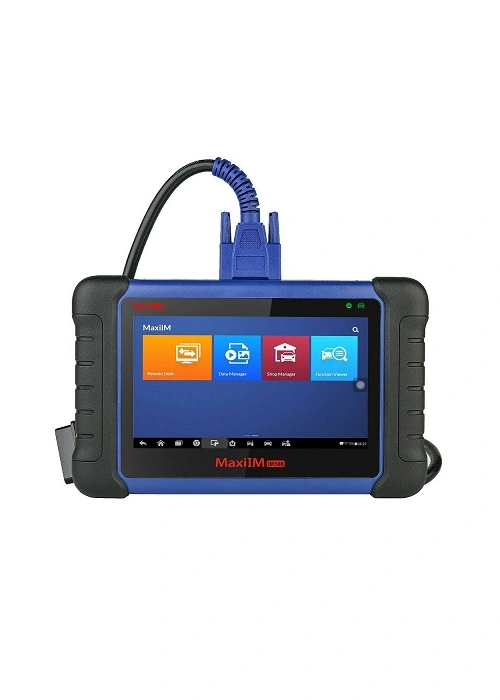

MaxiIM IM508 is a fast, easy-to-use, and ultraportable IMMObilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface. Euipped with the XP200 Key Programmer, IM508 is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.

MaxiIM IM508 Supports Muti-Language:English / Portuguese / Germany / Japanese / French / Spanish

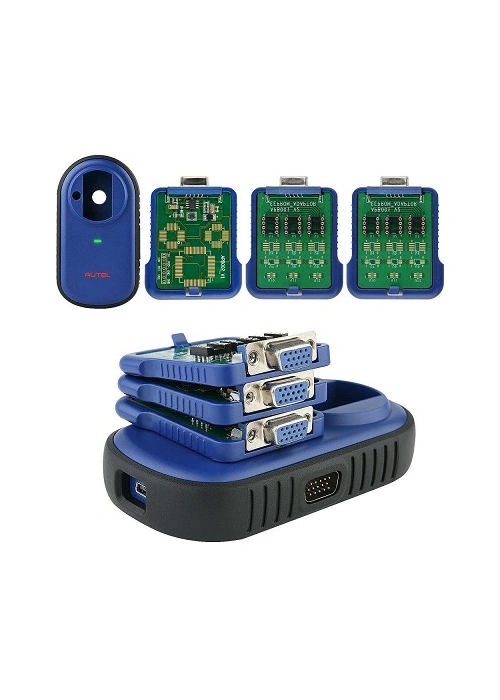

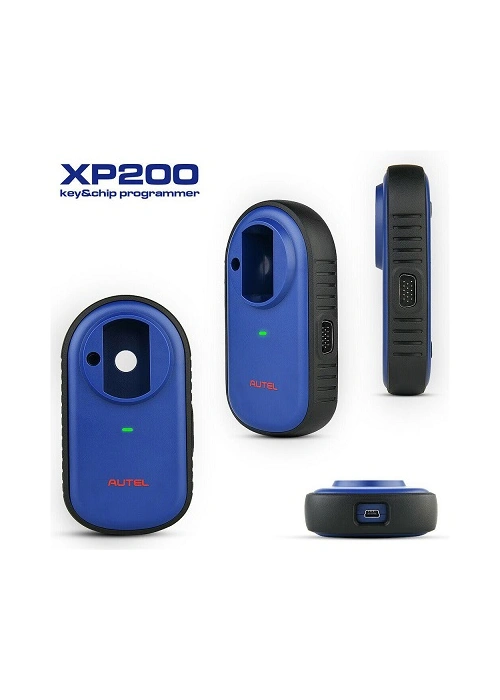

The XP200 is specially designed to read Volkswagen vehicle key chip data, clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tool and PC that are both loaded with programmer software, the XP200 can read/write key chip data quickly and accurately.

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection. The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc.

The Programming application requires connection between the tablet and the XP200, and no vehicle connection is required. This application can access the key chip, read, retrieve and write key information, as well as other key related functions.

Autel MaxiIM IM508  Advanced IMMO & Key Programming:

1.Read PIN/CS (AII key lost) 2.Key Generation 3.Key Learning/Remote Learning 4.Backup/Restore IMMO Data 5.IMMO ECU Reset/Adaptation,Refresh/Coding 6.BMW FEM/BDC Key Learning and ECU Adaptation 7.VW/Audi MQB Key Learning,48 Transponder(96-bit)Add Key ,All Key Lost,A6 AII Key lost

The Diagnostics application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), airbag system (SRS)……

Related tools

You may also want to compare it with the CGDI K2 or the KeyDiy KD-X2.
