Autel XP400 Key and Chip Programmer Work with Autel MaxiIM IM608/IM508
Autel XP400 Key and Chip Programmer Work with Autel MaxiIM IM608/IM508
Autel XP400 Key and Chip Programmer Work with Autel MaxiIM IM608/IM508
Autel XP400 Key and Chip Programmer Work with Autel MaxiIM IM608/IM508
Autel XP400 Key and Chip Programmer Work with Autel MaxiIM IM608/IM508
1/5

Autel XP400 Key and Chip Programmer Work with Autel MaxiIM IM608/IM508 Available in Lahore, Islamabad & across Pakistan

The Autel XP400 Key and Chip Programmer is a genuine key programmer for professional locksmiths. Buy the Autel XP400 Key and Chip Programmer in Lahore from AM Auto Tools with 1 year warranty and setup support, delivered to Islamabad, Rawalpindi, Karachi and across Pakistan.


-6%Rs 160,000
Was: Rs 170,000You save Rs 10,000

About this item

  • Support PC connection for data processing
  • MCU / EEPROM chip Read & Write
  • ECU Read & Write (bench work)
  • MC9S12 encrypted chip programming
  • Vehicle key Read / Write
  • Infrared key Read / Write for Mercedes-Benz
  • Remote frequency detection
  • IC card reading & writing
  • Transponder programming and renewal

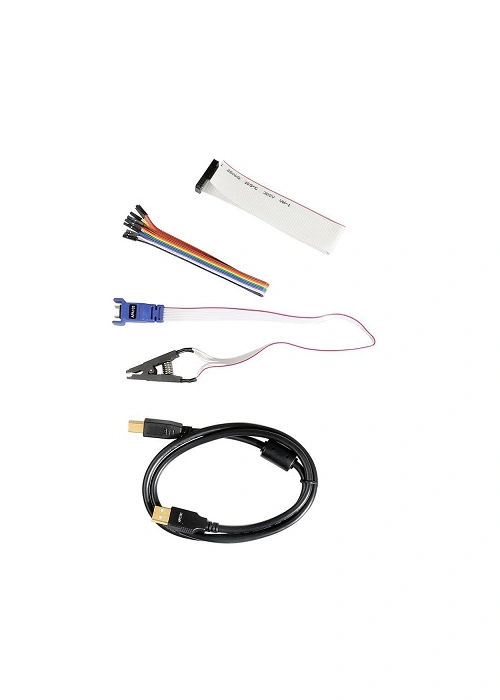

  • APA102 – Remote Match Cable
  • APA104 – ECU Cable (CAN / K-Line / LIN / Boot)
  • APA105 – MCU Cable (multi-signal programming)
  • APA106 – MC9S12 Cable
  • Mercedes Infrared Key Cable

Technical details

Flash GreenCommunication
Light RedError
Operating Temperature-10℃ ~ 60℃ (14℉ ~ 140℉)
Storage Temperature-20℃ ~ 60℃ (-4℉ ~ 140℉)
PortMini USB, VGA_DB15
Input Voltage5 VDC
Operating Current< 250 mA
Maximum Consumption1 W
Device Dimensions (L*W*H)130 mm * 68 mm * 28 mm
Package Dimensions (L*W*H)201 mm * 167 mm * 75 mm
Net Weight466 g
DC Port12V power supply input
USB PortData communication + 5V power
DB26 Pin PortConnects MCU / ECU / Infrared / MC9S12 cables
Cross Signal PinsFor MCU board or DIY signal wiring
IC Card AreaIC card reading/writing
Vehicle Key SlotInsert key for programming
Transponder SlotTransponder chip operations
RF Induction AreaRemote detection/programming
Infrared Key SlotMercedes infrared key support
Status LEDShows working state
LockerSecures EEPROM during operation
EEPROM SlotEEPROM adapter connection
Power Consumption≤1 W
Dimensions130 × 68 × 28 mm
Weight466 g

Compare with similar items

Autel XP400 Key and Chip Programmer Work with Autel MaxiIM IM608/IM508This item
Autel G-Box3 Automotive Key Programmer for Toyota- Mercedes-Benz All Keys Lost SolutionXTOOL X100 PADS key Programmer + Car scanner XTOOL X100 PAD Elite2 key programmer
PriceRs 160,000Rs 45,000Rs 180,000Rs 280,000
Customer rating★★★★★★★★★★ 0★★★★★★★★★★ 0★★★★★★★★★★ 0★★★★★★★★★★ 0
Reviews0000
Part numberKP-008AM1042AM1062AM1061
Warranty1 year1 year1 year1 year

About the Autel XP400 Key and Chip Programmer

Autel XP400 Key and Chip Programmer Work with Autel MaxiIM IM608/IM508

We supply the Autel XP400 Key and Chip Programmer in Lahore at a competitive price, with support from technicians who use these tools every day.

Autel XP400 KEY & CHIP PROGRAMMER Function List:

MCU / EEPROM Chips Read / Write

MC9S12 Encryption Chip Read / Write

Mercedes Infrared Key Read / Write

Autel XP400 KEY & CHIP PROGRAMMER Introduction:

Connect the IM608 tablet to the XP400 Key Programmer (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key related functions. The XP400 includes 12 ports:

1. DC Port – provides 12V DC power supply.

2. USB Port – provides data communication and 5V DC power supply.

3. DB 26-Pin Port – connects with the for Mercedes Benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.

4. Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.

5. IC Card Induction Area

6. Vehicle Key Slot – holds the vehicle key.

7. Transponder Slot – holds the transponder.

8. Remote Control Transponder Induction Area Figure 2-5 XP400 Views 11

9. Mercedes Infrared Key Slot – holds the Mercedes infrared key.

10. Status LED – indicates the current operating status.

11. Locker – locks the EEPROM component transponder slot to ensure proper functioning.

12. EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.

DC Port : Provides 12 V power supply for the XP400.

USB Port: Provides data communication and power supply for handheld device, PC and XP400.

Five components can be connected to this port:

APA102 – Remote Match Cable (optional)

Cross-shaped Signal Pin: Places MCU board, MCU spare cable or DIY signal cable to read or write MCU and ECU chips.

IC Card Induction Area: Reads and writes IC card information.

Vehicle Key Slot: Holds the vehicle key to read or write vehicle key information.

Transponder Slot: Holds the transponder to read or write transponder information.

Remote Control Transponder Induction Area: Reads and writes remote control transponder information.

Mercedes Infrared Key Slot: Holds Mercedes infrared key to read or write Mercedes vehicle key information.

Status LED: Shows the current operating status of the XP400. See the table below for detailed description.

Locker : Places EEPROM chip or socket to read or write EEPROM information.

EEPROM Component Transponder Slot : Holds the EEPROM plug-in transponder or EEPROM socket.

Autel XP400 Adapter Parameter

Contact us for more info..
