AUTOOL PT610 Cylinder Pressure Gauge Available in Lahore, Islamabad & across Pakistan
The AUTOOL PT610 is a professional digital engine compression tester developed for measuring cylinder pressure in compatible petrol engines. Buy the AUTOOL PT610 Cylinder Pressure Gauge in Lahore from AM Auto Tools with 1 year warranty and setup support, delivered to Islamabad, Rawalpindi, Karachi and across Pakistan.
About this item
- Real-time cylinder pressure
- Average pressure value
- Current temperature
- Measurement duration
- Saved pressure values for individual cylinders
- Save cylinder measurement
- Store up to six cylinder results
- Lock the displayed value
- Clear stored interface data
- Reset pressure to zero
- Compare cylinder readings
- Digital engine-cylinder compression testing
- Suitable for compatible petrol engines
- Wide 0–426.6 PSI measuring range
- Pressure measurement in PSI, Bar and kg/cm²
- Temperature display in °C and °F
- Clear 2.8-inch backlit digital display
- 0.01 display resolution
- Real-time pressure display
- Average pressure calculation
- Temperature monitoring
- Measurement-time display
- Stores readings for up to six cylinders
- Cylinder-to-cylinder result comparison
- Save and data-lock functions
- Pressure zeroing function
- Stored-data clearing
- Quick pressure-release valve
- Reinforced 78.7-inch rubber hose
- Durable copper fittings and adapters
- Switchable key sound
- Adjustable display backlight
- Portable handheld construction
- Suitable for professional workshop diagnosis
- AUTOOL PT610 digital pressure gauge
- High-pressure connecting hose
- Reinforced rubber extension hose
- M10 threaded adapter
- M12 threaded adapter
- M14 threaded adapter
- M16 threaded adapter
- M18 threaded adapter
- Straight pressure test tube
- Angled pressure test tube
- Connection accessories
- Protective storage case
- User instructions
- Bring the engine to the testing condition specified by the vehicle manufacturer.
- Switch off the engine and follow the correct safety procedure.
- Disable fuel injection and ignition as required.
- Remove the spark plug from the cylinder being tested.
- Select the correct threaded adapter for the spark-plug opening.
- Connect the adapter, hose and PT610 pressure gauge securely.
- Switch on the tester and reset the pressure reading to zero.
- Crank the engine according to the manufacturer’s compression-test procedure.
- Read the measured pressure on the digital display.
- Save the result under the corresponding cylinder number.
- Release the pressure and repeat the process for the remaining cylinders.
- Compare all saved readings with the manufacturer’s specifications.
- Difficult engine starting
- Engine misfires
- Rough idling
- Reduced engine power
- Excessive oil consumption
- Uneven cylinder performance
- Worn piston rings
- Leaking intake or exhaust valves
- Damaged cylinder-head gasket
- Cylinder or piston wear
- Incorrect valve timing
- Automotive repair workshops
- Engine rebuilders
- Motorcycle workshops
- Vehicle inspection centres
- Automotive diagnostic technicians
- Mobile mechanics
- Fleet maintenance departments
- Automotive training institutes
- Experienced DIY vehicle owners
- Engine type
- Expected compression range
- Spark-plug thread size
- Adapter compatibility
- Vehicle manufacturer’s testing procedure
- Work in a well-ventilated area.
- Keep hands, clothing and cables away from moving engine components.
- Disable fuel delivery and ignition when required by the service procedure.
- Allow excessively hot engine components to cool before installing adapters.
- Confirm that every adapter and hose connection is secure.
- Do not exceed the tester’s rated pressure range.
- Release stored pressure before disconnecting the hose.
- Wear suitable eye and hand protection.
- Compression testing should be performed by a trained technician.
Technical details
| Brand | AUTOOL |
|---|---|
| Model | PT610 |
| Product type | Digital cylinder pressure gauge and compression tester |
| Main application | Petrol-engine cylinder compression testing |
| Pressure range | 0–426.6 PSI |
| Alternative pressure ranges | 0–29.4 Bar / 0–30 kg/cm² |
| Pressure units | PSI, Bar and kg/cm² |
| Temperature units | °C and °F |
| Display | 2.8-inch HD backlit screen |
| Display resolution | 0.01 |
| Data storage | Up to six cylinder readings |
| Displayed information | Real-time pressure, average pressure, temperature and measuring time |
| Pressure release | Quick-release valve |
| Adapter material | Copper |
| Reinforced hose length | Approximately 78.7 inches / 2 metres |
| Main tester dimensions | Approximately 175 × 72 × 29mm |
| Suitable engines | Compatible petrol engines |
| Typical applications | Cars, motorcycles and compatible light commercial vehicles |
Compare with similar items
| AUTOOL PT610 Cylinder Pressure GaugeThis item |  THINKCAR TWB733 3D PROFESSIONAL WHEEL BALANCER |  AUTOOL RT120 12V Automotive Relay Tester – 4-Pin & 5-Pin Relay Diagnostic Tool |  AUTOOL PT635 Fuel Pressure Gauge(Hight-end Version) | |
|---|---|---|---|---|
| Price | Rs 28,500 | Price on request | Rs 7,500 | Rs 58,000 |
| Customer rating | 0 | 0 | 0 | 0 |
| Reviews | 0 | 0 | 0 | 0 |
| Part number | AM-1145 | — | AM-1144 | AM-1147 |
| Warranty | 1 year | 1 year | 1 year | 1 year |
About the AUTOOL PT610 Cylinder Pressure Gauge

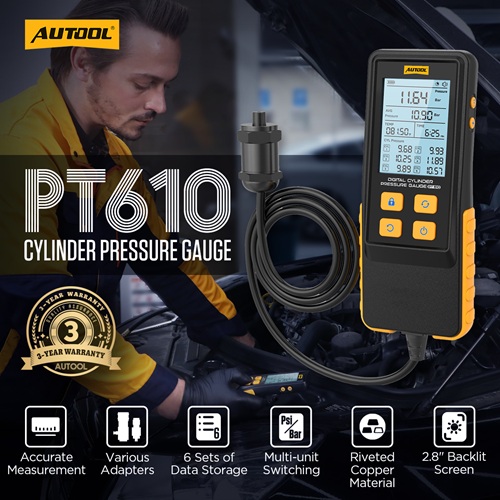

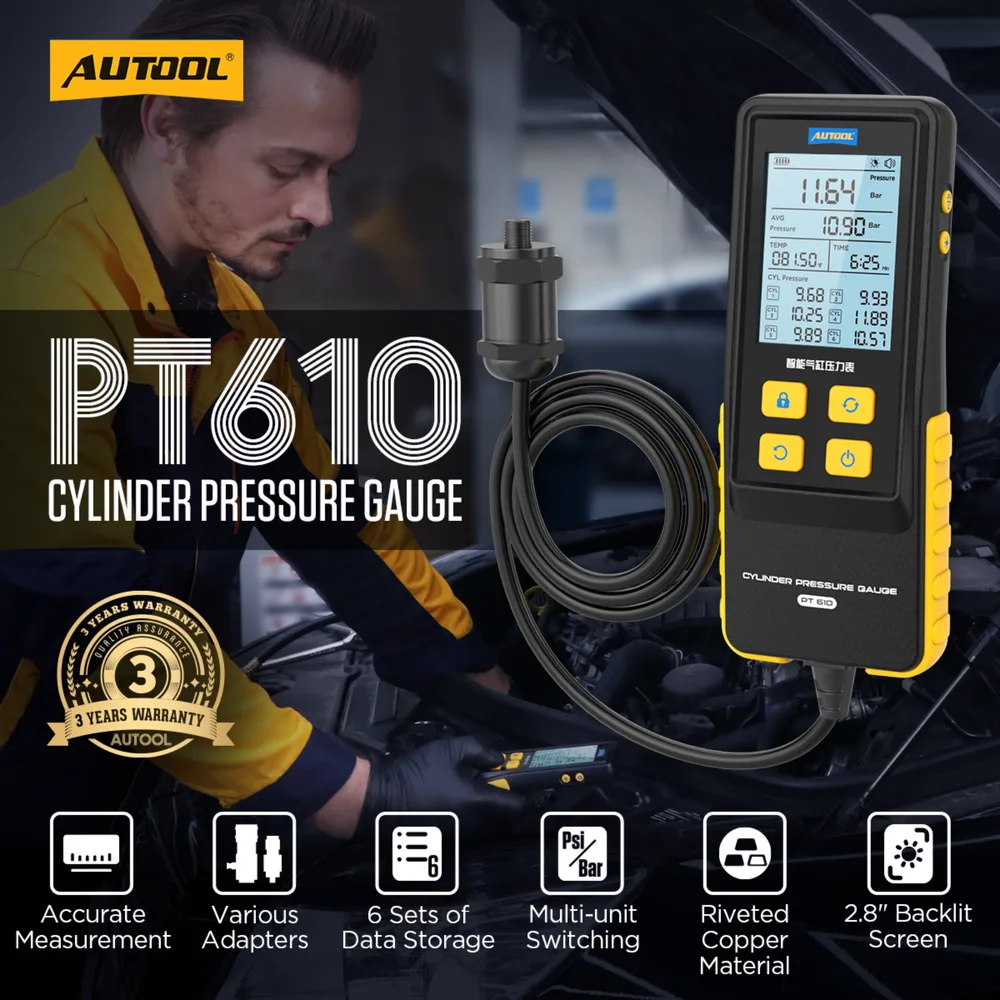

AUTOOL PT610 Digital Cylinder Pressure Gauge
The AUTOOL PT610 is a professional digital engine compression tester developed for measuring cylinder pressure in compatible petrol engines.
You can collect the AUTOOL PT610 Cylinder Pressure Gauge in Lahore from our shop or have it delivered to Islamabad and anywhere else in Pakistan.
Proper and balanced cylinder compression is essential for reliable combustion and engine performance. Low or uneven compression can indicate problems involving piston rings, valves, cylinder-head gaskets, cylinder walls or valve timing.
The PT610 gives automotive technicians clear digital readings and stores pressure results for as many as six cylinders, making it easier to compare compression values without recording every measurement manually.

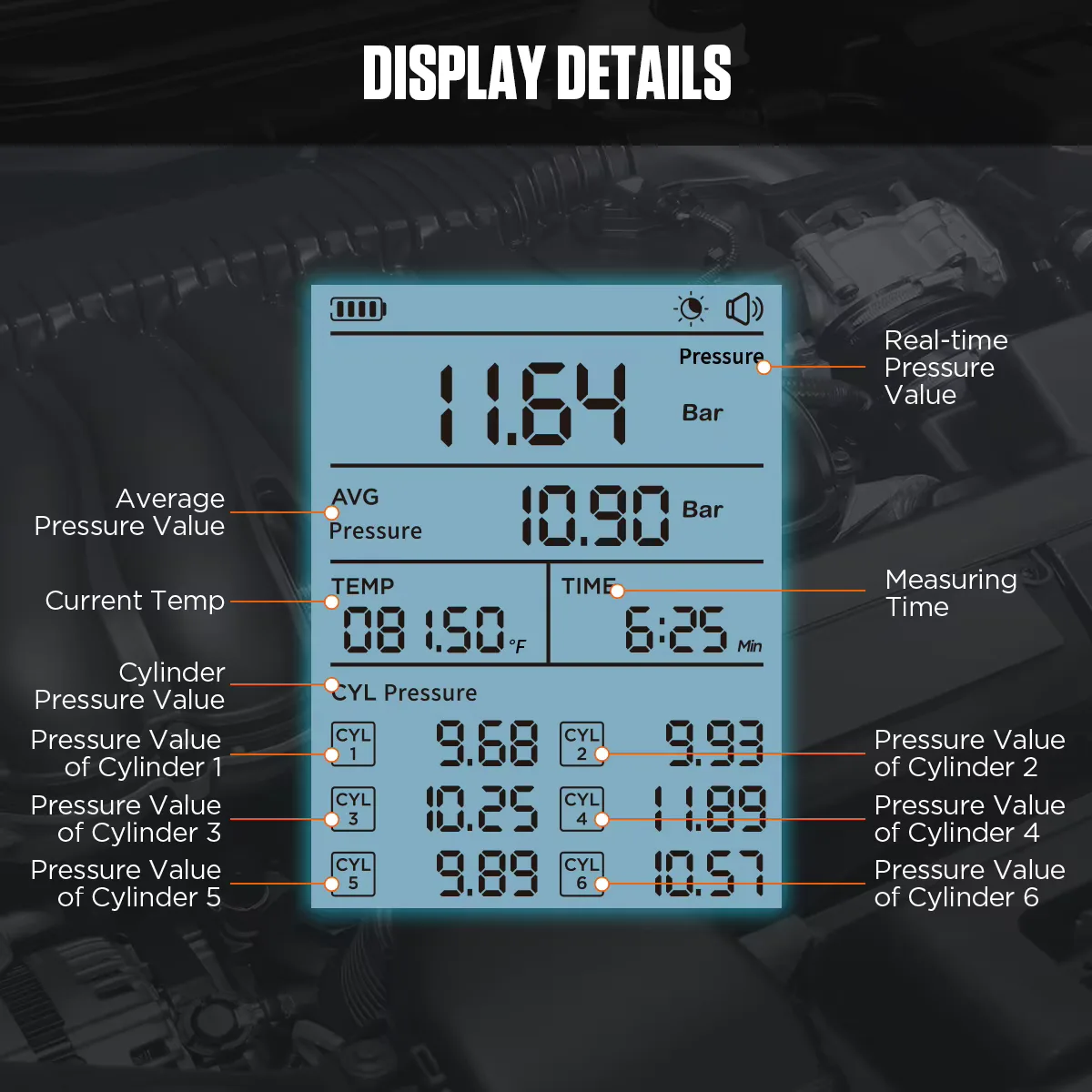

Intelligent Digital Pressure Measurement
Unlike a conventional analogue compression gauge, the PT610 uses a digital measurement system to present important test information clearly.
This organized display helps technicians evaluate cylinder performance more efficiently.
Wide 0–426.6 PSI Measuring Range
The AUTOOL PT610 offers a wide pressure-measurement range suitable for many compatible petrol-engine compression tests:
Pressure units can be changed directly from the tester, allowing technicians to work with their preferred measurement standard.

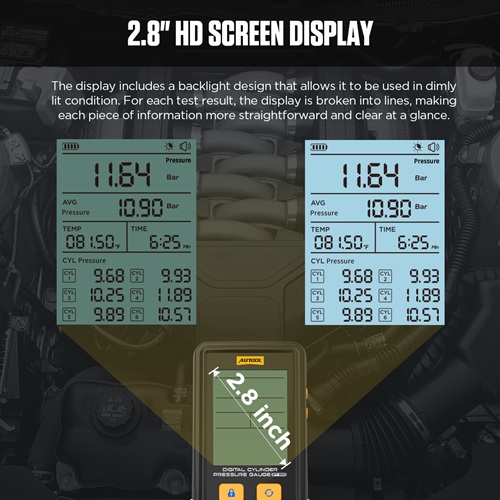

2.8-Inch Backlit Display
The clear 2.8-inch HD screen includes an adjustable backlight for convenient use in bright or poorly illuminated workshop environments.
With a stated display resolution of 0.01, the PT610 presents detailed digital measurements without relying on the operator to estimate the position of an analogue needle.

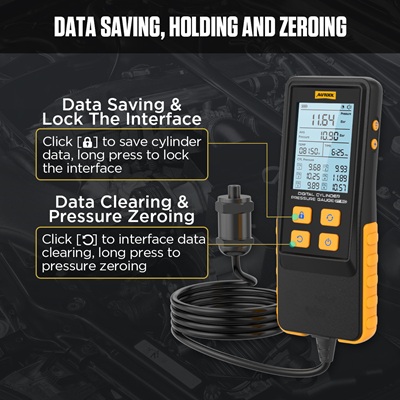

Six-Cylinder Data Storage and Comparison
The PT610 can save pressure results for up to six cylinders.
After measuring each cylinder, the operator can store its reading and compare it with the remaining cylinders. This feature is especially useful when checking whether one or more cylinders have significantly lower pressure than the others.
Available data functions include:
Switchable Pressure and Temperature Units
The tester supports several measurement units for convenient workshop operation.
Pressure units
Temperature units
The unit settings can be changed using the buttons on the tester.
Quick Pressure-Release Function
A dedicated quick-release valve allows the technician to release retained pressure quickly after completing a measurement.
This makes it easier to reset the tester before moving to the next cylinder and helps speed up the complete engine compression test.

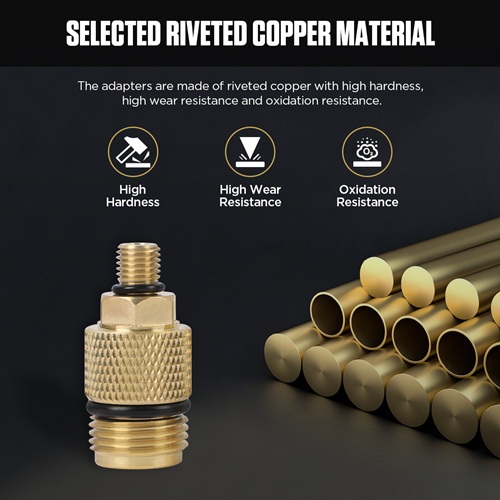

Durable Copper Adapters
The PT610 kit includes several copper adapters for connecting the pressure tester to compatible spark-plug openings.
The copper construction provides:
Always select the adapter that correctly matches the engine’s spark-plug thread.
Reinforced Extra-Long Hose
The included reinforced rubber hose measures approximately 78.7 inches, or two metres.
Its extended length provides convenient access when working around different engine layouts. The hose is designed to withstand pressure, heat and repeated bending during normal workshop use.
Key Features

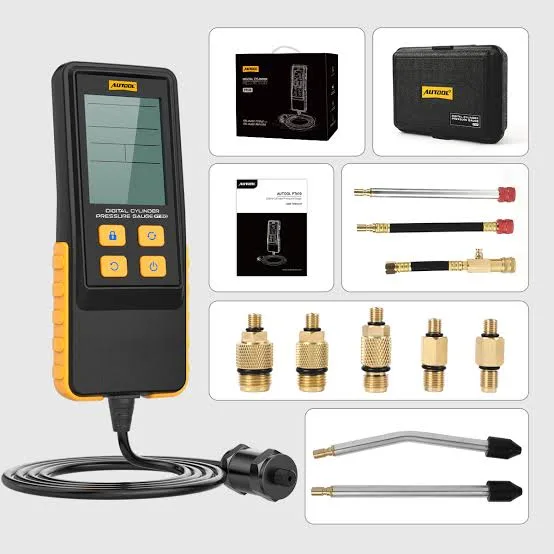

Typical Kit Contents
The PT610 package commonly includes:
Package contents can vary by production batch or supplier. Please confirm the exact included accessories before ordering.
Technical Specifications
How to Use the AUTOOL PT610
What Can a Compression Test Help Identify?
A cylinder-compression test can support the diagnosis of conditions such as:
A compression test indicates a pressure condition but does not automatically identify its exact mechanical cause. Additional diagnosis, such as a wet compression test or cylinder leak-down test, may be required.
Suitable For
The AUTOOL PT610 is suitable for:
Important Compatibility Notice
The PT610 is primarily designed for cylinder-compression testing on compatible petrol engines through the spark-plug opening.
Before purchasing or operating the tester, confirm:
Do not use the tester on a diesel engine if the engine’s compression pressure exceeds the PT610’s rated range or if suitable diesel-specific adapters are not supplied. Diesel engines commonly require a dedicated high-pressure diesel compression tester.
Compression readings vary according to engine design, temperature, battery condition, cranking speed, altitude and testing procedure. Always compare results with the vehicle manufacturer’s specifications.
Safety Information
