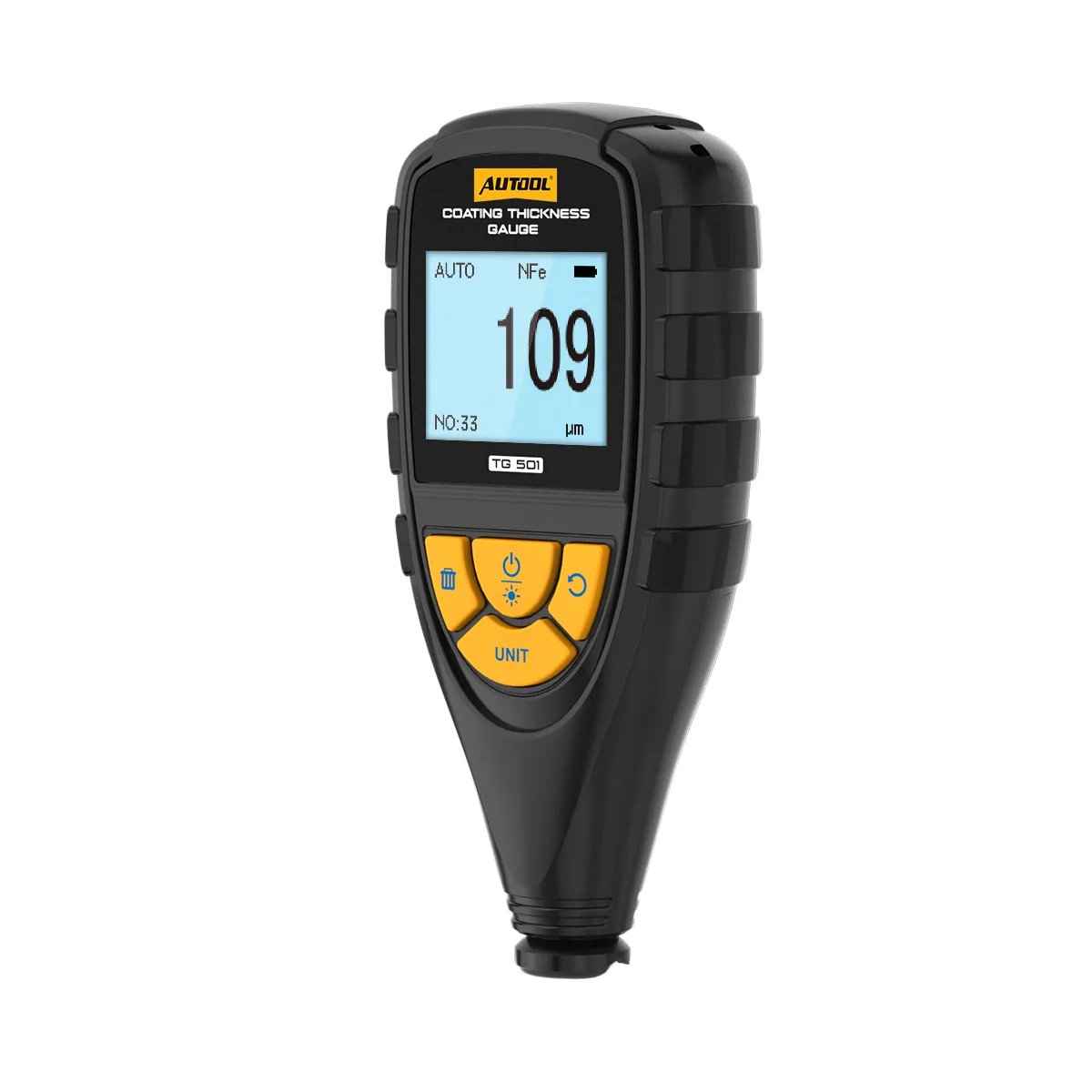

AUTOOL TG501 Paint Thickness Gauge/Tester Available in Lahore, Islamabad & across Pakistan
AUTOOL TG501 car paint thickness tester is a magnetic coating thickness gauge that uses the principle of magnetic induction to determine the coating thickness by measuring the change in magnetic flux. Buy the AUTOOL TG501 Paint Thickness Gauge/Tester in Lahore from AM Auto Tools with 1 year warranty and setup support, delivered to Islamabad, Rawalpindi, Karachi and across Pakistan.

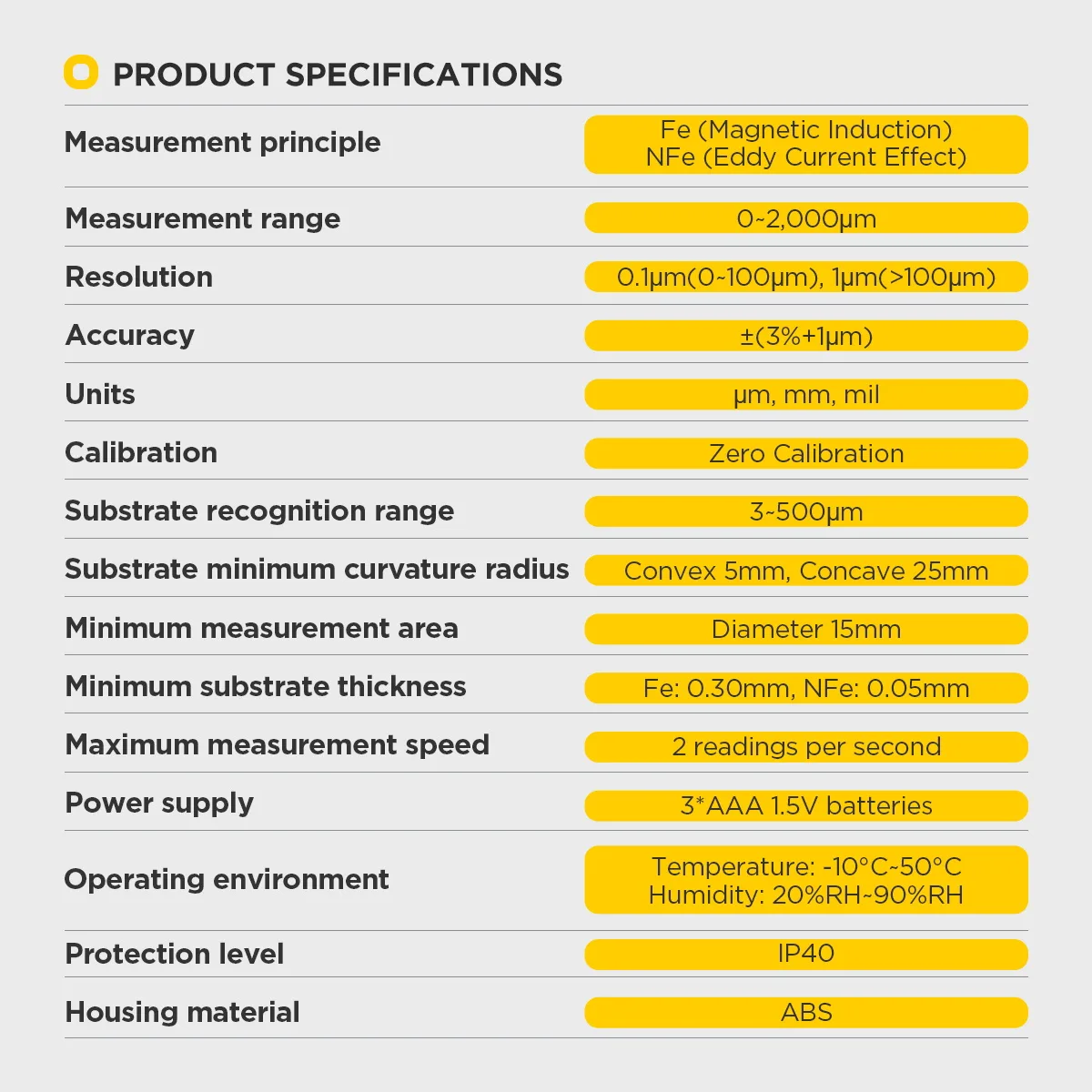

Technical details
| Measurement principle | Fe (Magnetic Induction), NFe (Eddy Current Effect) |
|---|---|

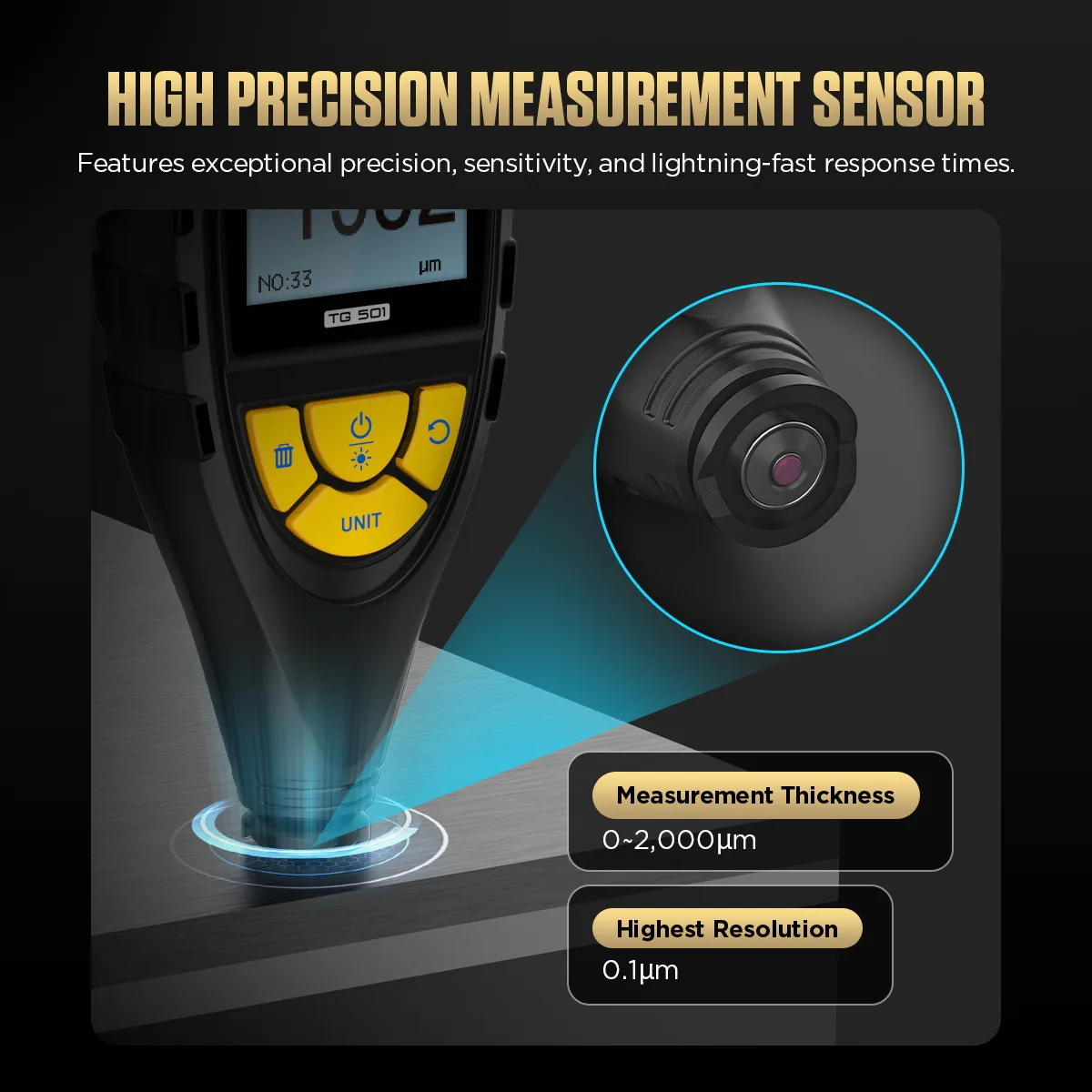

| Measurement range | 0-2,000μm |
| Resolution | 0.1μm (0-100μm), 1μm (>100μm) |
| Accuracy | ±(3%+1μm) |

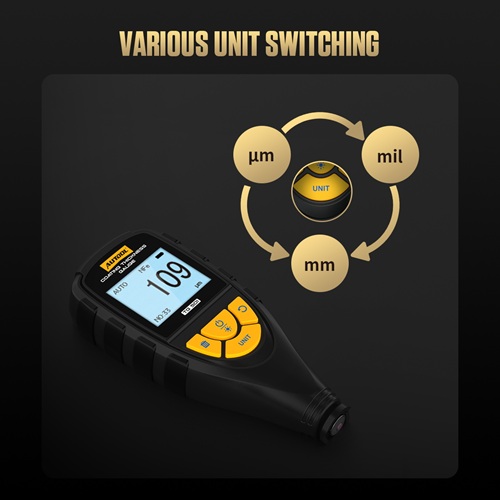

| Units | μm, mm, mil |
| Calibration | Zero Calibration |
| Substrate recognition range | 3-500μm |
| Substrate minimum curvature radius | Convex 5mm, Concave 25mm |
| Minimum measurement area | Diameter 15mm |
| Minimum substrate thickness | Fe: 0.30mm, NFe: 0.05mm |
| Maximum measurement speed | 2 readings per second |
| Power supply | 3*AAA 1.5V batteries |
| Operating environment | Temperature: -10°C~50°C, Humidity: 20%RH~90%RH |
| Protection level | IP40 |
| Housing material | ABS |
Compare with similar items
| AUTOOL TG501 Paint Thickness Gauge/TesterThis item |  THINKCAR TWB733 3D PROFESSIONAL WHEEL BALANCER |  AUTOOL RT120 12V Automotive Relay Tester – 4-Pin & 5-Pin Relay Diagnostic Tool |  AUTOOL PT610 Cylinder Pressure Gauge | |
|---|---|---|---|---|
| Price | Rs 22,000 | Price on request | Rs 7,500 | Rs 28,500 |
| Customer rating | 0 | 0 | 0 | 0 |
| Reviews | 0 | 0 | 0 | 0 |
| Part number | AM-1146 | — | AM-1144 | AM-1145 |
| Warranty | 1 year | 1 year | 1 year | 1 year |
About the AUTOOL TG501 Paint Thickness Gauge/Tester
AUTOOL TG501 car paint thickness tester is a magnetic coating thickness gauge that uses the principle of magnetic induction to determine the coating thickness by measuring the change in magnetic flux. When the probe comes into contact with the coating, a closed magnetic circuit is formed between the probe and the magnetic substrate. The presence of a non-magnetic coating changes the reluctance of the magnetic circuit (the greater the reluctance, the smaller the magnetic flux). The thicker the coating, the greater the reluctance and the smaller the magnetic flux. By measuring the change in magnetic flux, the instrument can calculate the thickness of the coating.
Workshops looking for the AUTOOL TG501 Paint Thickness Gauge/Tester in Lahore can order it from our shop with setup guidance and delivery across Pakistan.
AUTOOL TG501 Car Paint Tester Features
High-Precision Measurement: Accurately measures coating thickness on various material surfaces, meeting the needs of industries such as automotive repair, shipbuilding, aerospace, and more.

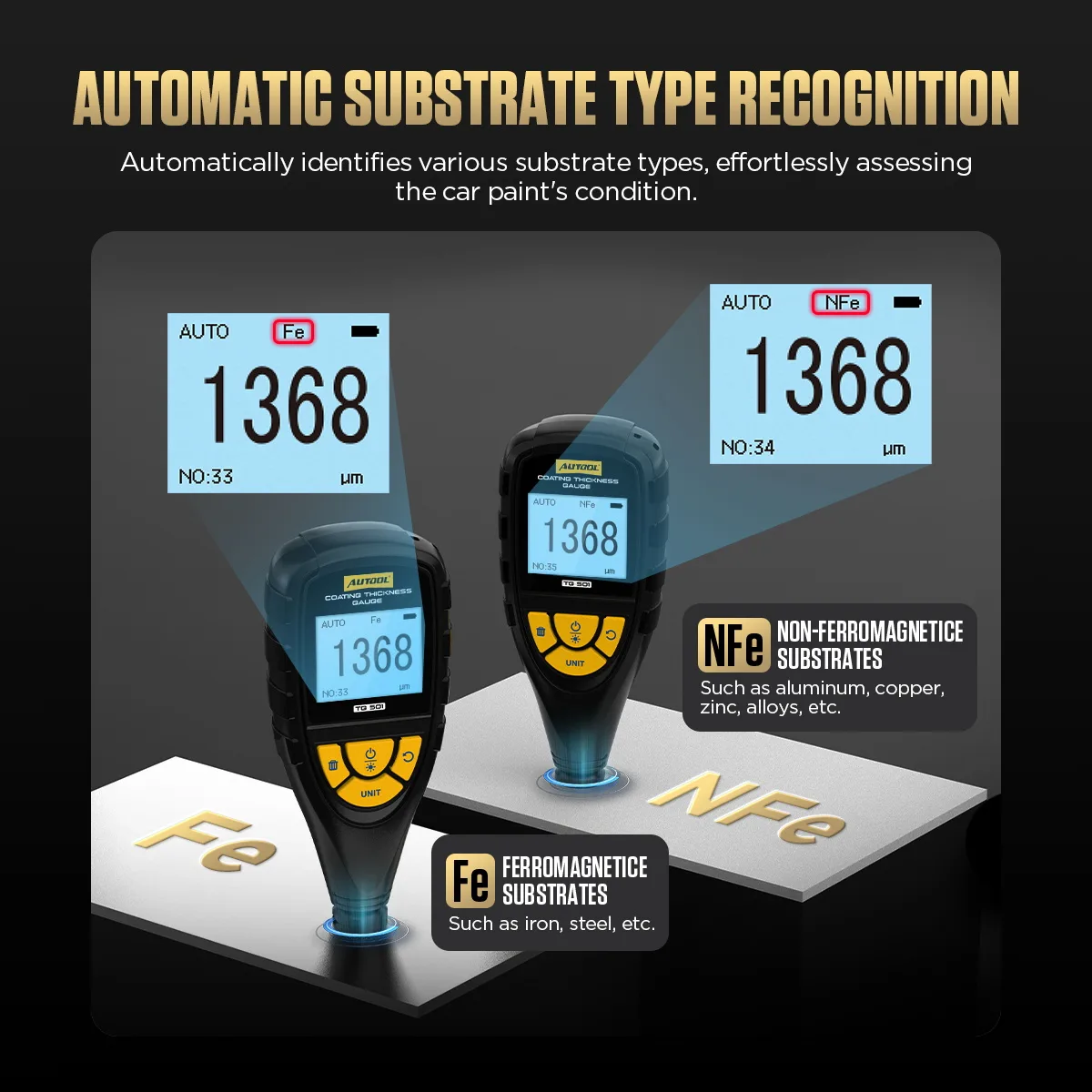

Wide Compatibility: Supports multiple measurement modes and functions, including measuring non-conductive coatings on non-magnetic metal substrates (such as aluminum, copper, and zinc alloys), as well as non-magnetic coatings on magnetic metal substrates (such as iron and steel).
Easy to Operate: Features an intuitive user interface and straightforward operation, allowing users to quickly get started and perform efficient measurements.
Excellent Stability : Offers strong stability and repeatability, ensuring accurate measurement results under various environmental conditions.
High Portability: Designed as a handheld device, it is compact and lightweight, making it easy for users to carry and operate anywhere.
Three-year Warranty: For damages caused by non-human factors, AUTOOL promises to provide free replacement parts within three years. If you have any requests, please feel free to contact us, and we will respond promptly within 24 hours.
AUTOOL TG501 Thickness Gauge Operating Instructions
Clean the Surface: Remove dust, oil, and other impurities from the surface to ensure it is clean and smooth.

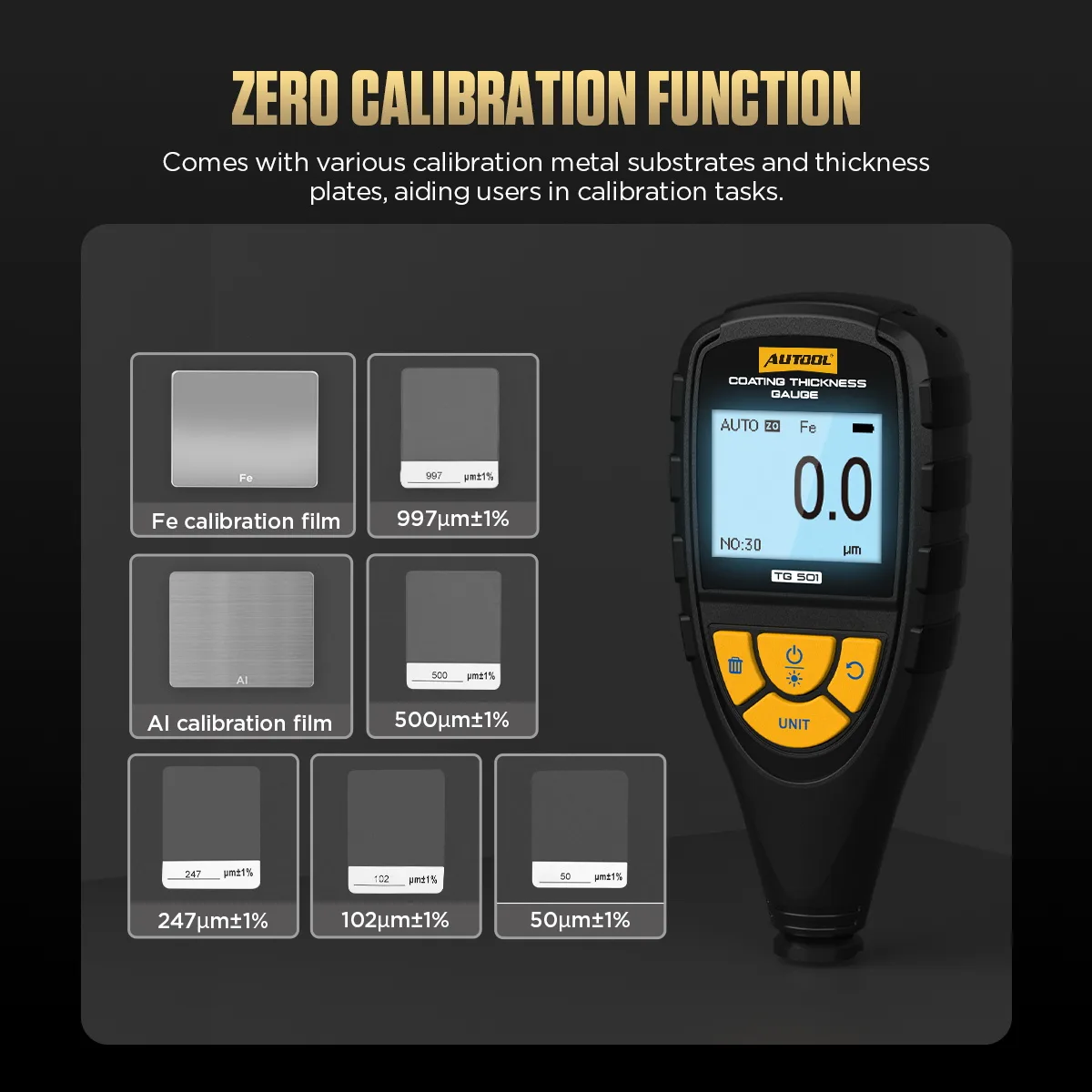

Calibrate the Device: Place the probe on an uncoated substrate and press the calibration button to complete zero-point calibration.
Measure Coating Thickness: Place the probe vertically on the test surface and press the measurement button to read the value. Perform multiple measurements and take the average to improve accuracy.
