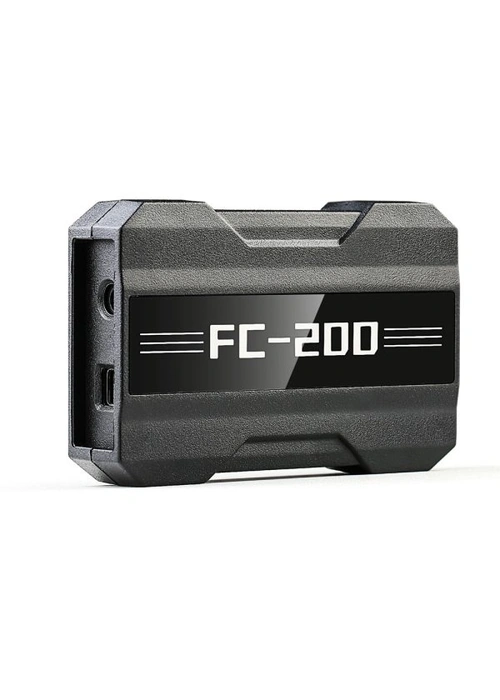

The CGDI CG FC200 ECU Programmer Full Version is a genuine ECU programming tool for professional workshops and technicians. Buy the CGDI CG FC200 ECU Programmer in Lahore from AM Auto Tools with 1 year warranty and setup support, delivered to Islamabad, Rawalpindi, Karachi and across Pakistan.
| Model | CGDI CG FC200 ECU Programmer Full Version |
|---|---|
| Part number | AM1103 |
| Key features | CG FC200 ECU Programmer Full Version with New Adapters Set 6HP & 8HP / MSV90 / N55 / N20 / B48/ B58 and MPC5XX Adapter |
| Category | ECU Chip Tuning Programmer |
| Warranty | 1 year |
CGDI CG FC200 ECU Programmer Full VersionThis item | OBDSTAR ECU Master Configuration ( C ) package for HD Truck & Tractor ECM TCM BCM Clone | OBDSTAR DC706 ECU/TCU Clone Tool – Professional ECU Cloning Solution | OBDSTAR ECU MASTER PC-based ECU flasher CAR 12-VOLTS PACKAGE | |
|---|---|---|---|---|
| Price | Rs 225,000 | Rs 460,000 | Rs 410,000 | Rs 380,000 |
| Customer rating | 0 | 0 | 0 | 0 |
| Reviews | 0 | 0 | 0 | 0 |
| Part number | AM1103 | — | — | — |
| Warranty | 1 year | 1 year | 1 year | 1 year |
1. Bundle Deal with CG FC200 Full Version with All License Activated and MPC5XX Adapter.
Contact us for the latest price and availability of the CGDI CG FC200 ECU Programmer in Lahore, and for advice on choosing the right setup.
CG FC200-MPC5XX-P02-M230102 adapter can be used for MPC5X series clone without opening cover.
Support BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8
2. Protect Original Car Parts
More than 98% of ECUs support BENCH mode and OBD mode, no need to open the cover and punch holes to protect the original car.
3. Intelligent Recognition
The “identification” function can help users better diagnose whether the ECU module is communicating and check whether the wiring is wrong. If the ECU module can communicate without damage and the wiring is correct, the recognition can be successful, and the chip information, hardware information and firmware information can be read out.
Supports ECU data reading and writing and module cloning, no synchronization matching, no online programming, data sub-regional burning, automatic verification, and maximum protection of chips and modules.
Supports engine computer ISN code acquisition for all BMW series (including Mini), which is convenient for key matching and anti-theft maintenance.
Solve the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.
Support engine computer data analysis and modification for Audi/Seat/Skoda/Volkswagen models;
Support the shutdown of Bosch MED/EDC17 series engine computer anti-theft system;
Support the TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.
8. FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess, Dimsport etc.
9. For Checksum Function, Please Check FC200 Support Checksum List for Reference.
10. There are 3 Operating Modes: CAN-BUS, Bench Mode and Boot Mode
11. Multi-Language: English, French, Simplified Chinese (Traditional Chinese, Spanish, Polish and Turkish need to pay)
12. Full Version with All License Activated, including Denso and China Delphi.
Free Update Online for One Year. Annual Fee will be $200/year after the first year.
The level is clear, the function is clear, and the “brand-model-ECU” structure is used to help users save time and accurately find the operating directory.
Support ECU model and Bosch number search, avoid the trouble of level selection, and enter the function interface as quickly as possible.
ECU Search: Take the BMW MSV90 engine computer as an example. First select “BMW”, select “ECU” as the search condition, enter “MSV90”, click the search button, and the ECU type will appear.
Bosch Number Search: Take the Volkswagen engine computer as an example. First select “Volkswagen”, select “Bosch Number” as the search condition, and enter “0261S10525”.
Please note that the Bosch number is a ten-digit number and the letters are capitalized. Click the search button, and the ECU type will appear.
3. Intuitive Wiring Diagram
Highly paid professional designers are hired to produce, 1:1 simulation, bright colors, to avoid user wiring errors.
Support 4200 kinds of ECUs, involving 80% of the models on the market.
European Cars: Abbas, Alfa Romeo, Aebi, Artec, Aston, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, CASE, CASE Tractors, Dallara, Deutz, DS, Ducati, Fendt, Ferrari, Fiat, Jaguar, KTM, Lada, Lamborghini, Lancia, Land Rover, MAN, Maserati, McLaren, Mercedes-Benz, MG, Mini, Opel, Peugeot, Piaggio, Porsche, Renault, Royal Enfield, Saab, SEAT, Skoda, Smart, Steyr, UAZ, Vauxhall, Volkswagen (VW), Volvo, Volvo Penta.
American Cars: Can-Am, Caterpillar, Chevrolet, Chrysler, Dodge, Ford, Ford Trucks, Freightliner, GMC, Indian, Internation, Jeep, Lincoln, New Holland, Polaris, Hidu.
Asian Cars: Force, Genesis Motors, Honda, Hyundai, Infiniti, Isuzu, Kassan, Kia, Kubota, Mahindra, Mitsubishi Fuso, Nissan, Subaru, Suzuki, Toyota.
Chinese Cars: Changan, Chery, Foday, Geely, Great Wall, Iveco, Jianghuai, Jiangling, Lifan, Ferguson, Valtra
CG FC200 Latest Update Information:
CG FC200 V1.2.6.0 Registered Version New (2025.02.27)
1. “Three readiness monitors not ready” function:
DELPHI: MT22.1, ME22.1.1, MT22U
Jiangling/Foton/Great Wall: EDC17C81/EDC17C63/EDC17C53
Jaguar Land Rover: MED17.0.1, MED17.0, MED17.9.7, MED17.9.8, MED17.9.9, MED17.8.31, MED17.8.32
2. ECUs with newly added checksum: MT20U, MT22U, MT20U2, MT22.1, MT22.1.1
3. M7, ME7.8.8 added the function of modifying CALID code
4. Added Wuling SIM2K-D51 module, and supports verification function, VIN modification and three readiness monitors not ready functions
5. Added Wuling SCE60 module
6. Added Hyundai SIM2K-47 module
7. Added ECUs with VIN modification function:
Marelli ECU: 8GMK, 8GML, 9GC
Bosch ECU: ME7.4.5, M7.9.8
1. Optimized the read and write functions of ME17.9.23 and ME17.9.21.1, EDC17C69
2. Fixed the problem of some DCM7.1APs failing to read and write PFlash
3. Optimized three readiness monitors not ready of Wuling SIM2K-51.4
FC200 V1.2.5.2 Registered Version (2025.01.18)
1. Added three ECUs with unready functions for domestic models:
Silver housing: ME17, ME17.8.8, MED17, MED17.8.10, MED17.8.2, MED17.8.21
Black housing (Black): ECU6.1, ME17, ME17.U.6, UP6
2. Added three ECUs with unready functions for Hyundai Kia: MEG17.9.12, MEG17.9.13, MEG17.9.2, MEG17.9.21, MEG17.9.8, ME17.9.1, ME17.9.11, ME17.9.11.1, ME17.9.21, ME17.9.21.1, MED17.9.30, MED17.9.8, EDC17CP14, ME17.9.8
3. Added Jinbei Lingdian ECU and supports VIN change and three unready functions: LINCONTROL LEC4A, LINCONTROL STC-213
4. Added Volkswagen Skoda ME7.5.20 three unready and VIN change functions
5. Chery ME7.9.7 added ExtFlash verification algorithm
6. Added Bosch ECU: UP6 TC1728, MED17.8.21, ME17.9.8
7. Added Huasong N20 model and supports VIN code change
8. Added BOSCH VIN change ECU: MEG17.9.13, ME17.9.1, EDC17CP48, EDC17C69, EDC17C83, ME17.3.0, EDC17C10, EDC17C58, ME17.0.3, EDC17C70
1. Fixed the issue of ME17/ME17.U.6/ECU6.1 failing to modify VIN
2. Optimized the verification algorithm of M7/ME7.8.8/M7.9.7/SIM2K-51.4
3. Fixed some bugs and optimized software performance
FC200 V1.2.5.1 Registered Version (2025.01.15)
1. Added Wuling SIM2K-51.4 read/write, VIN modification, and three unready functions
2. Added Jinbei Lingdian TR40 read/write, VIN modification, and three unready functions
3. Added three unready functions of Volkswagen ECUs: MED17.1.6, MED17.1, MED17.5, MED17.5.1, MED17.5.2, ME17.5.22, MED17.1.10, MED17.5.20, MED17.5.25, MED17.5.5, EDC17CP14
4. Added three unready functions of BMW N20/N55/B38/N13 ECUs: MEVD17.2.5, MEVD17.2.4, MEVD17.2.9, MEVD17.2.P, MEVD17.2, MEVD17.2.6, MEVD17.2.G, MEVD17.2.K, MEVD17.2.3
5. Added verification function ECUs: ME7, ME7.8.8, ME7.9.7, ME7.9.71, M7.9.7, M7.9.7.1, ME7.5.20
1. Fixed the problem of failure to write PFlash data in some ME17.9.64
2. Fixed the problem of failure to backup data of Honda Keihin KEIHIN series ECU
3. Fixed the problem of PFlash verification failure of Hyundai Kia CPGDSH2.26.1
4. Fixed the VIN code change function for ME17.9.1, ME17.9.11, ME17.3.0, and EDC17C81
5. Fixed some bugs and optimized software performance
FC200 V1.2.5.0 Registered Version New (2025.01.06)
1. Added the “Three readiness monitors not ready” function of GM E37E38E39E39AE78E80E83E84 ECU
2. Added MELCO (Mitsubishi) series BENCH mode ECU:
MELCO E6T85xxx MH8601 test
MELCO E6T8xxxx MH8115 test
MELCO E6T7xxxx MH8611 test
MELCO E6T86xxx MH8115 test
3. Added BOSCH (Bosch) BENCH mode ECUTCU:
4. Added the “Repair of Lovol engine duration” of data processing to Lovol ECU: EDC17C63, EDC17CV54
5. Added the BOOT mode read and write function for GM E83
6. Added the function of reading and writing DFlash, PFlash, Maps, and ExtEEPROM separately for Mercedes-Benz SIM271DE
7. Added the “Unlock” function of VOLVO MB279700-96xx
8. Added “Read Password” function in Hyundai Kia CPEGP2.10.1 boot mode
Optimized the “Turn off anti-theft” function of EDC17C53, EDC17C63, and EDC17C81
Optimized Porsche SDI10.x ECU wiring diagram
Fixed the problem that Mercedes-Benz CRD3P.C0 and CRD3P.D1 can not be read and written
Fixed the problem that DCM2.5 failed to write PFlash
Fixed the problem that M7 failed to recognize but can read and write
Fixed the problem that VGS2-FDTC failed to recognize after the updated version
Optimized the process of M7.9.7, M7.9.7.1, ME7.9.7, ME7.9.7.1 to handle the “Three readiness monitors not ready” function
Fixed the problem that Honda 37820 SH7058 does not communicate with ECU after writing data
CG FC200 V1.2.4.0 Registered Version (2024.11.25)
1. Added Paypal payment function in non-simplified Chinese version
2. Added DELPHI BOOT mode ECU:
3. Added MARELLI BOOT mode ECU:
METATRON_MF4 MPC5674F test
4. New GM TCU: ACDelco T87A SPC564A, BOSCH T93 SPC5888
CONTINENTAL SID605 SPC564A test (Boot mode)
BOSCH MED17.7.7 (Boot mode)
BOSCH EDC17CV54 (BENCH/Boot mode)
ACDelco E78 MPC5566 (Boot mode)
BOSCH EDC17CV54 adds VIN change function
M7, ME7.8.8 adds unlock function
Adds Volkswagen (WV) MED17.1, MED17.5.5 password reading method
Optimized the main interface ECU search function
Solved the PFlash data encryption problem of M7, ME7.8.8
Fixed the MT86 PFlash reading and writing failure problem
Iveco BOSCH EDC17C69 ECU adds BENCH mode connection diagram
Optimized menus, wiring diagrams and other functions
CG FC200 V1.2.3.0 Registered Version (2024.10.19)
1. Added FC200 device binding function, after binding, you can get the latest news related to the device in time
2. Added DENSO SH72531 type ECU:
Nissan: 23740-5Sxxx_Gen2, 23740-3Nxxx_Gen1
Subaru: Subaru SH72531, 112800 SH72531
3. Added Honda KEIHIN type ECU:
Honda/Acura: KEIHIN 37820-xxx-xxx SH72543, KEIHIN 37820-Rxx-xxx SH7058, KEIHIN PGM FI SH7058
4. Added Volkswagen ECU mileage repair function:
MED17.5.25, ME17.5.22, MED17.1.27
5. Added PFlash checksum function for GM Exx ECU
6. Other newly added ECUs:
BOSCH MG1US008 (BENCH mode)
BOSCH MD1CE100 (BENCH mode)
Hyundai/Kia KEFICO CPEGP3.20.1 (BENCH mode)
Hyundai/Kia KEFICO CPEGP2.10.1 (Boot mode)
Hyundai/Kia CONTINENTAL SIM2K-240R (Boot mode)
GM AcDelco E84 (BENCH/Boot mode)
GM BOSCH ME9.6.1 (BENCH mode)
Fixed the problem that Suzuki BOSCH ME17.9.64 BENCH mode cannot connect
Fixed the problem that GM E39A failed to read EEPROM
Fixed the problem that TATA DCM7.24 failed to checksum
Fixed the problem that TATA MD1CS018 failed to checksum
Fixed the problem that CPEGD2.20.x failed to checksum
Fixed GM E39/E39A checksum issue
Fixed Ford SID208/SID209 password reading failure issue
Fixed DCM6.2AP, GPEC2, etc. data writing failure issue
CG FC200 V1.2.2.0 Registered Version NEW (2024.09.11)
1. FC200 devices within the service period can use this function for free. Devices that are not within the service period will not be able to obtain authorization after the annual subscription fee expires (Except Boot Mode).
ChinaDelphi MT20U MC912DT128
ChinaDelphi MT22U MC9S12XET256
ChinaDelphi MT20U2 MC9S12KG256
ChinaDelphi MT22.1 MC9S12XEQ512
ChinaDelphi MT22.1.1 MC9S12XET256
DELPHI _DCM7.24_CHINA TC277T
DELPHI _DCM7.1AP_CHINA TC277T
DELPHI DCM3.7AP_CHINA SH72544
DELPHI _DCM7.1AP_AshokLeyland_test TC277T
DELPHI _DCM7.1AP_Hyundai TC277T
DELPHI _DCM7.24_test TC277T
DELPHI _DCM7.1AP_TATA TC277T
2. FC200 devices within the service period can use this function for free. Devices that are not within the service period will not be able to obtain authorization after the annual subscription fee expires — DENSO ECU:
DENSO 275700_7082 SH72546(Test)
DENSO MITSUBISHI_L200 SH72543(Test)
DENSO 23740_5Sxxx_Gen2 SH72530(Test)
DENSO 275xxx-xxx SH7059(Test)
DENSO MB112700 SH72543(Test)
DENSO Subaru SH72543(Test)
DENSO TD112700-xxxx SH72530
DENSO 33910-05005 SH72530
DENSO 33920-xxxx_1N83 MPC5746
DENSO MB279700-9500 SH72543
DENSO MB279700-96xx SH72546
DENSO MB279700-9811 SH72546
DENSO MB279700-9801 SH72546
CONTINENTAL SIM2K_241_ECU TC1767
BOSCH Hongqi_H9_48V_Battery TC1724
KEFICO CPEBI2.20.2 TC1782
4. MSV80 Added a new button to read password
5. GM Exx/6T/L ECU/TCU of vehicle models optimized connection identification function
6. Fixed the issue of GM E80 connection failure
7. CONTINENTAL SID208, SID209 Added the function of reading password
CG FC200 V1.2.1.0 Registered Version (2024.06.25)
1. Added China DELPHI ECU, supporting OBD and BENCH modes:
4. Add PFlash verification function to Denso ECU
5. Add PFlash/ExtFlash verification function to BOSCH MPC5xx ECU
6. Optimize Flash verification function for BOSCH MG1/MD1 ECU
FC200 ECU Programmer Wiring Diagram:
For Volkswagen ME17.5.22-TC1724:
For BMW N20 MEVD17.2.9-TC1797:
BMW B58 MG1CS003-SPC5777:
BMW B38 MEVD17.23.-TC1793:
Mecedes Benz MED17.7.5-TC1793:

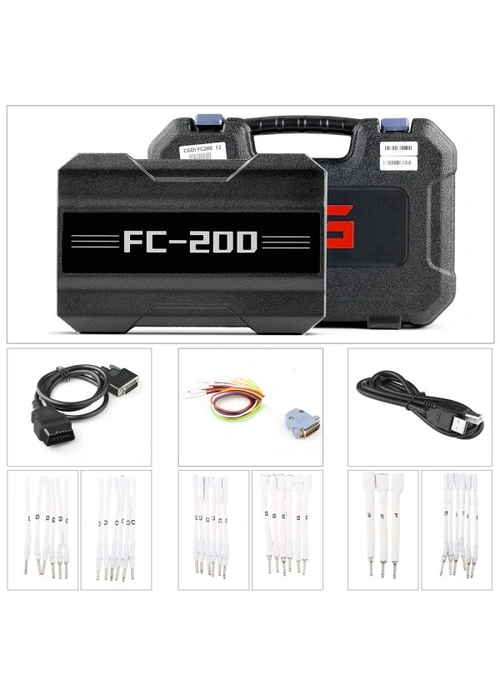

6pcs x G-type Adapter Cable
3pcs x F-type Adapter Cable
6pcs x E-type Adapter Cable
6pcs x D-type Adapter Cable
6pcs x C-type Adapter Cable
6pcs x B-type Adapter Cable
1pc x CG FC200-MPC5XX-P02-M230102 Adapter
Looking for alternatives? Take a look at the GODIAG GT100 and the KTM OBD2 gearbox tool.
