Description

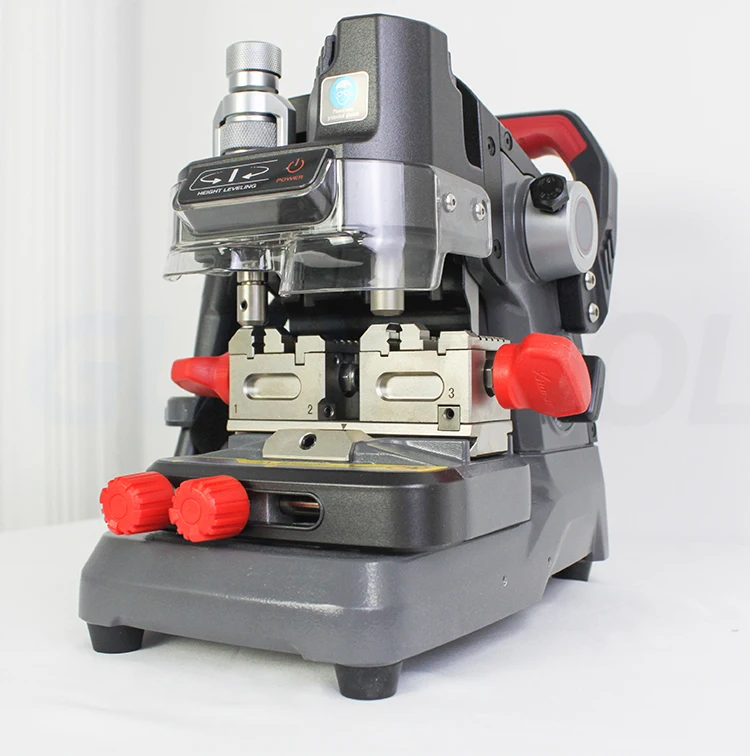

The DOLPHIN XP007C by Xhorse is a compact vertical milling key cutting machine designed for locksmiths who need precision, portability, and versatility for both residential and automotive keys.
This plug-in model delivers strong cutting performance without requiring a built-in battery.
Key Highlights
- Powerful Brushless DC Motor (120W)

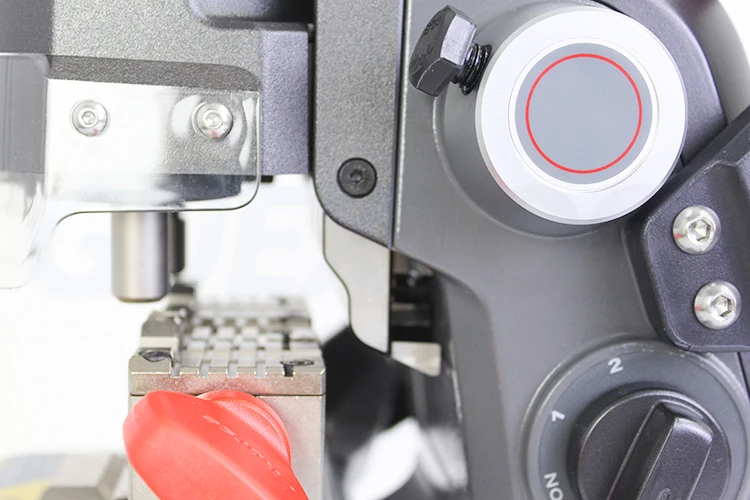

Two-speed operation for different cutting needs: - 1st Gear: 8000 RPM
- 2nd Gear: 12000 RPM

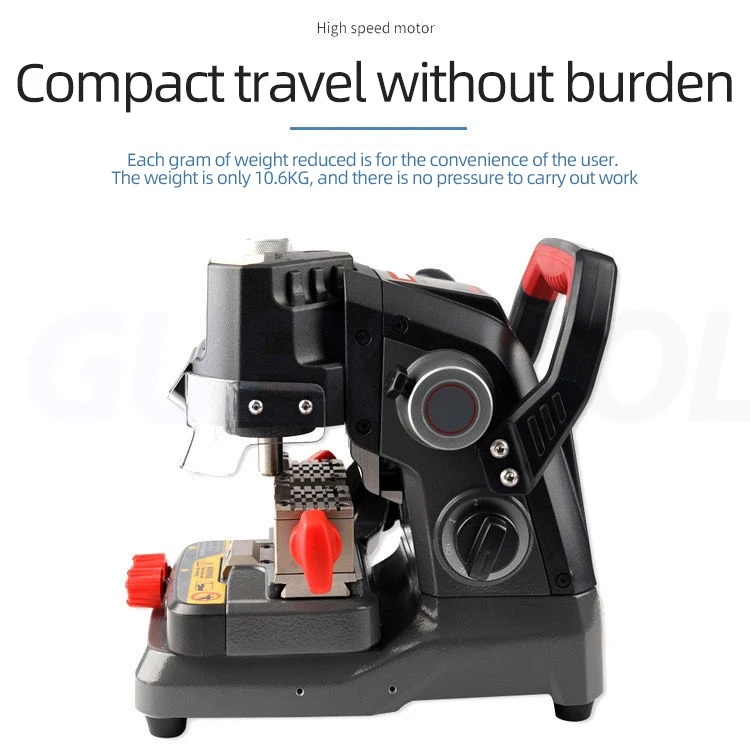

- Compact & Portable Design

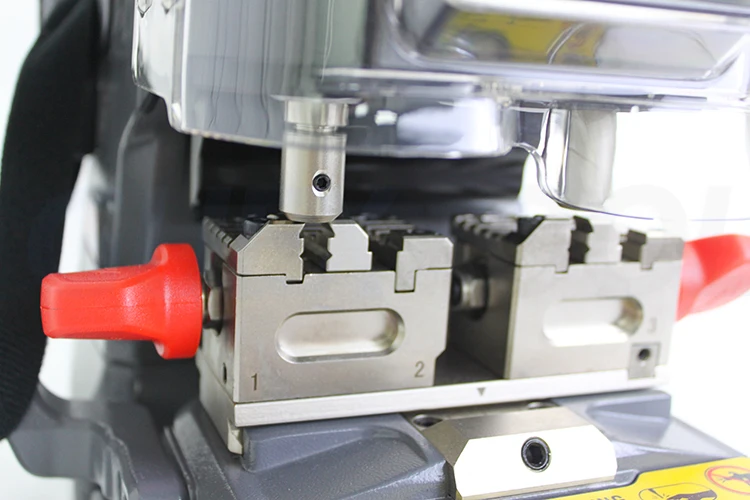

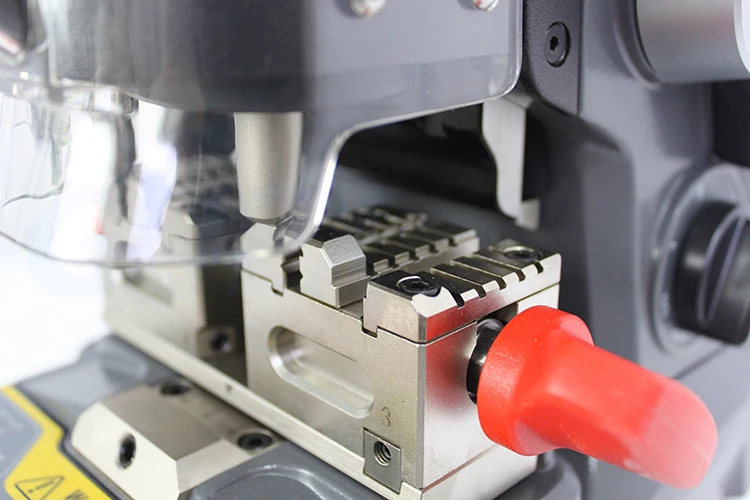

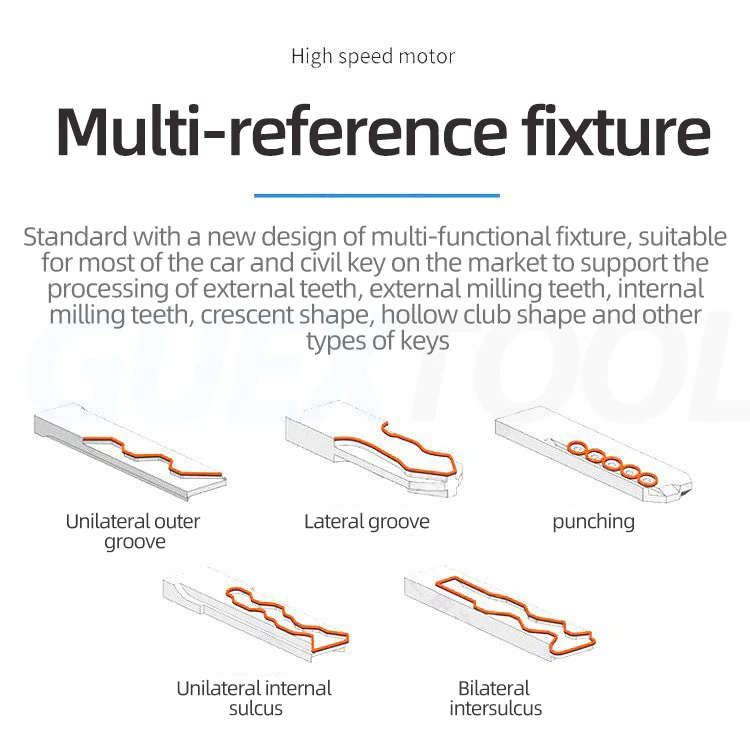

Small footprint makes it ideal for workshop benches and mobile locksmith setups. - Multi-Functional Clamp System
Supports processing of a wide range of key types: - External teeth keys
- External milled keys
- Internal groove keys
- Crescent-type keys
- Hollow / special-profile keys
- Most civil + automotive keys in the market
- Fine Precision Adjustment
Guide needle height can be micro-adjusted for highly accurate duplication. - Plug-In Operation (No Battery)
Reliable continuous use with direct power supply — ideal for shops or inverter setups.

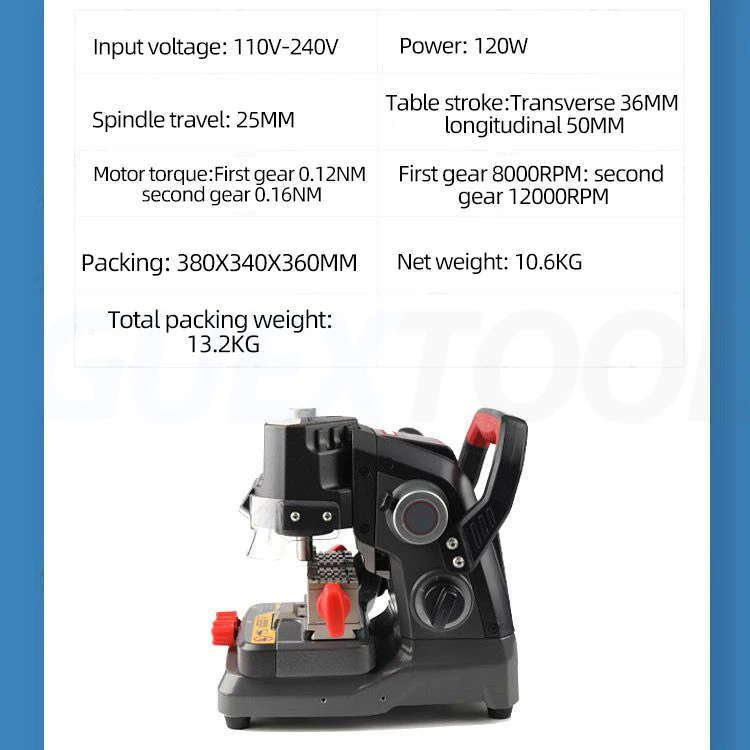

Technical Specifications
| Parameter | Details |
|---|---|
| Input Voltage | 110V – 240V |
| Power | 120W |
| Spindle Travel | 25 mm |
| Table Stroke | 50 mm (Longitudinal) / 36 mm (Transverse) |
| Motor Torque | 0.12 Nm (1st Gear) / 0.16 Nm (2nd Gear) |
| Speed | 8000 RPM / 12000 RPM |
| Machine Size | 27 × 16.8 × 35.5 cm |
| Net Weight | 10.6 kg |
| Gross Weight | 13.2 kg |
| Packing Size | 380 × 340 × 360 mm |

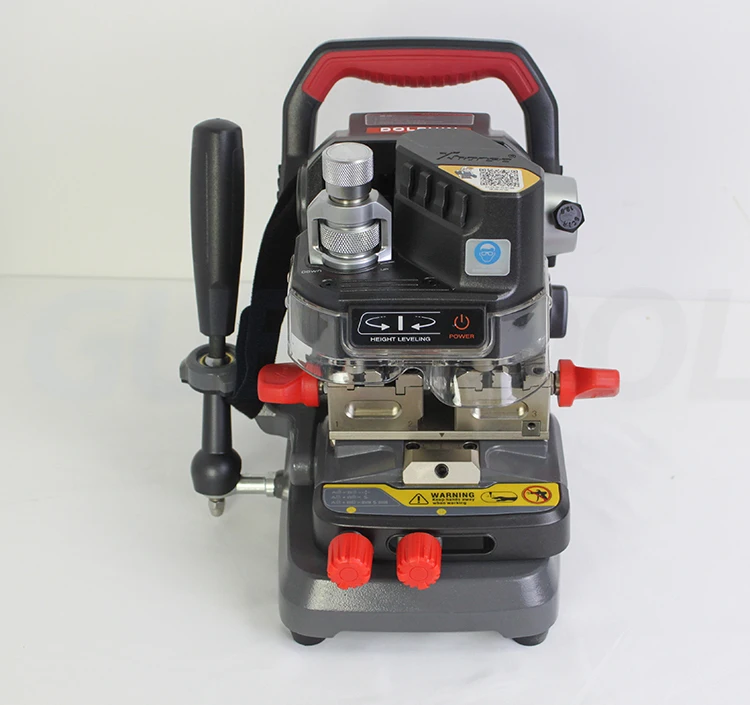

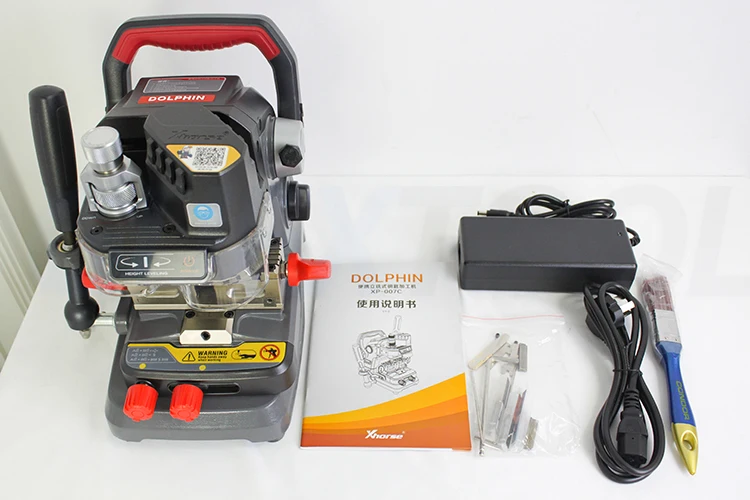

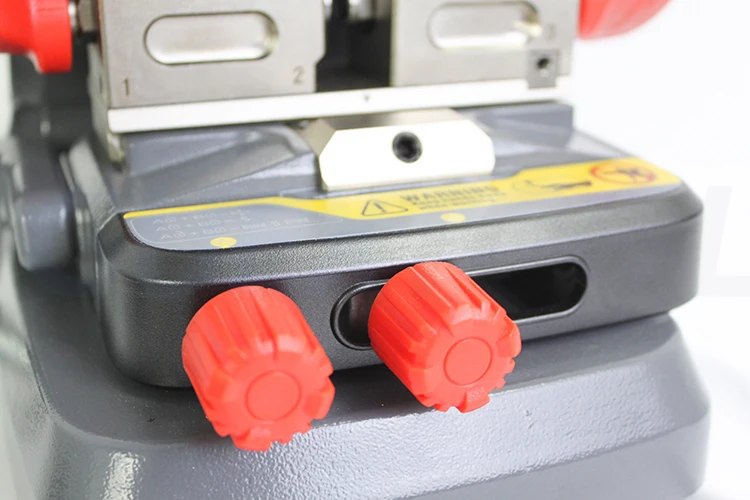

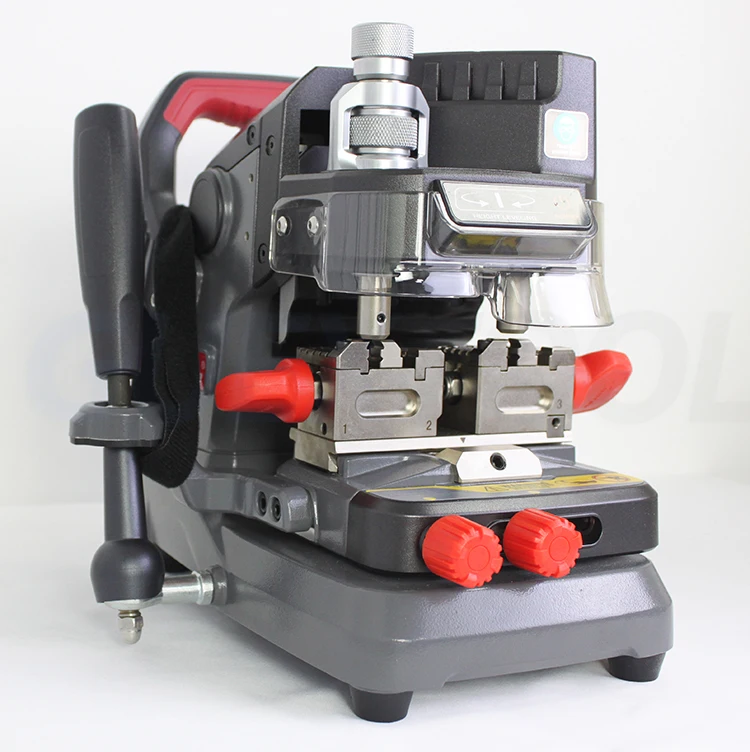

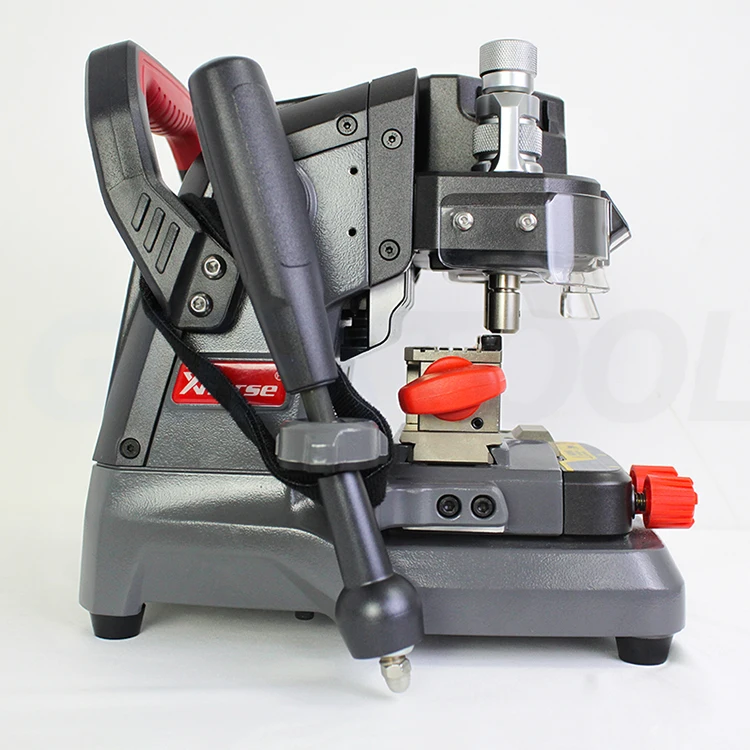

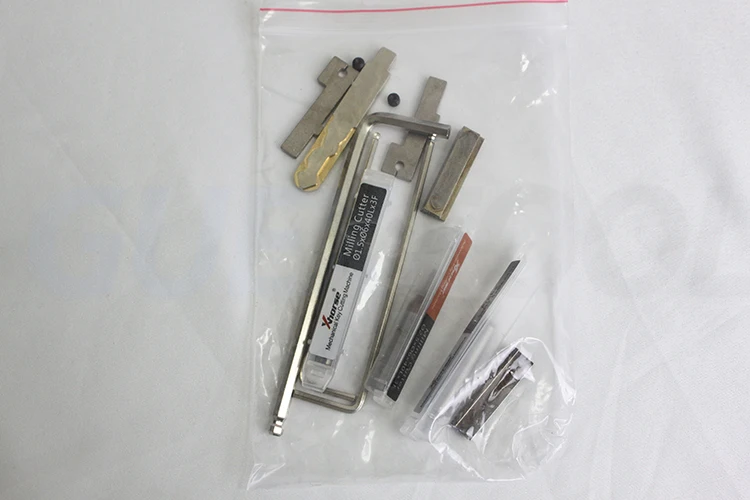

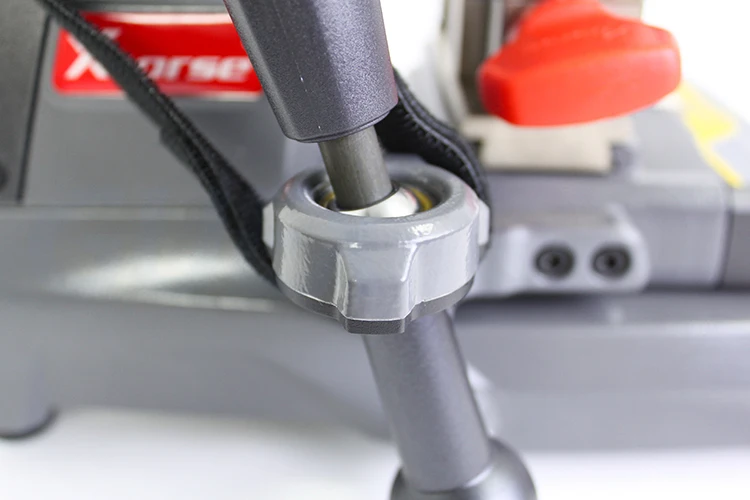

            Real time photos
