Lonsdor KH100 is a versatile hand-held smart device, able to access control key, simulate/ generate chip, generate remote (key), detect remote frequency, detect IMMO, unlock Toyota smart key and etc. Buy the Lonsdor KH100 Remote Key Programmer in Lahore from AM Auto Tools with 1 year warranty and setup support, delivered to Islamabad, Rawalpindi, Karachi and across Pakistan.
| Name | Notes |
|---|---|
| Antenna | To induce simulated chip and detect ignition coil |
| Display screen | 2.8-inch color screen, resolution: 320X480 |
| Induction coil | To identify, copy, generate key chip or remote, etc. |
| Port 1 | USB-B port |
| Port 2 | Dedicated port for remote’s connector |
| Power button | In shut-down state, tap to boot the device. In power-on state, tap to switch to power saving mode. Long press for 3s to shut down |
| Remote frequency detection | Put remote in this position to detect its frequency. |
| High-frequency detection | To identify and copy IC card. |
Lonsdor KH100 Remote Key ProgrammerThis item | Autel G-Box3 Automotive Key Programmer for Toyota- Mercedes-Benz All Keys Lost Solution | XTOOL X100 PADS key Programmer + Car scanner | XTOOL X100 PAD Elite2 key programmer | |
|---|---|---|---|---|
| Price | Rs 42,000 | Rs 45,000 | Rs 180,000 | Rs 280,000 |
| Customer rating | 0 | 0 | 0 | 0 |
| Reviews | 0 | 0 | 0 | 0 |
| Part number | KP-013 | AM1042 | AM1062 | AM1061 |
| Warranty | 1 year | 1 year | 1 year | 1 year |

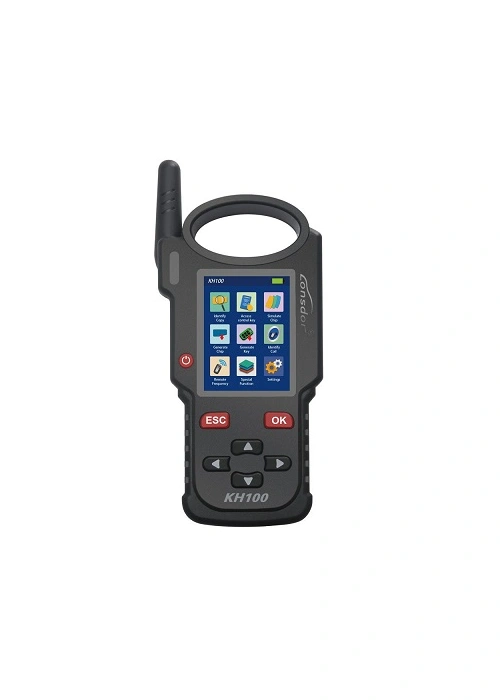

Lonsdor KH100 Hand-Held Remote Key Programmer
We supply the Lonsdor KH100 Remote Key Programmer in Lahore at a competitive price, with support from technicians who use these tools every day.
Lonsdor KH100 is a versatile hand-held smart device, able to access control key, simulate/ generate chip, generate remote (key), detect remote frequency, detect IMMO, unlock Toyota smart key and etc.
Lonsdor KH100 Function List:
Identify/copy/generate chip:
Multi-vendor chips supported
Especially Toyota 8A(H) chip Our predominance
Able to simulate 4D/46/48 chips
With built-in super sensory data collector(no interference within 1 meter when collecting data)
Generate remote/smart key:
Dedicated connector to generate remote/smart key Online update supported
Remote generation diagram
Smart key generation diagram
Dedicated connector to generate remote key:PS2-7Pin OD3.5
Access control/remote frequency
One-click identify and copy IC/ID cards
Detect remote frequency bands with high accuracy
One click identify ID card,able to copy multi-vendor chps,at the back sensor area
Detect multiple frequency brands with high accuracy
Lonsdor KH100 Identify Coil
①Search smart induction area
Connect remote key with remote connector, Put KH100’s antenna position. If inductive signal is identified, the device will make sounds, please check if the position is right (as shown below).
Connect remote key with remote connector, Put KH100’s antenna close to key identification coil, and use key to turn ignition ON. When KH100 buzzer beeps, it means
Lonsdor KH100 Remote Frequency
Enter this menu, put remote control at the device’s induction area to detect remote frequency.
Lonsdor KH100 Special function
Include: detect infrared signal, unlock Toyota smart key, More functions, to be continued…
Put remote control at the infrared signal detection area, press the remote’s button once. When the light on KH100’s screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).
② Unlock Toyota smart key
Put in smart key, click OK to operate.
Lonsdor KH100 Device components:
Lonsdor KH100 Specifications:
Screen size: 2.8 inch color screen
USB: USB-B/Charge-Data Transfer
Connector Port: PS2-7Pin OD3.5 7Pin,1.27 Spacing,The 2ND Pin:NC
Enter settings menu, and connect the device to network, then choose [check for updates], one-click online upgrade. 3.0 After-sales service
(1) Our company will provide you with excellent after-sales service and warranty service within agreed time.
(2) The warranty period lasts 12 months from device activation date.
(3) Once the product is sold, the return and refund will not be accepted if there is no quality problem.
(4) For product maintenance beyond the warranty period, we will charge labor and material costs.
(5) If the device is faulty or damaged due to any of the following reasons, we reserve the right not to provide service based on the agreed terms(but you can choose paid service).
(6) If the auxiliary parts and other parts(other than the main components of the device) are faulty, you can choose the paid repair service provided by our company or our authorized customer service outlets.
(7) We will perform repair after receiving your device and confirming its problems, so please fill in the problems in details.
(8) After repair finished, we will return the device to customer, so please fill in the correct delivery address and contact number.
(9) Customers who needs to send the device for repair, shall bear the cost, such as round-trip delivery cost, transportation cost and etc. If the device is damaged in the process of delivery, our company will not bear relevant fees. In particular cases, we will assist the customer to claim for compensation against the shipping company..
(10) We do not provide sales invoice to individual in any form. If need it, please ask the dealer you purchased from to invoice you.
(11) Please keep the warranty card properly, and fill in the card when returning your device for repair, so that we can deal with the relevant work procedures (the warranty card attached to the end of the manual).
Lonsdor KH100 Registration guide
Note: After booting the device, please connect to WIFI and enter the following process.
① For the first use, please prepare a common call phone or email to help complete activation process, click OK to start.
② Boot the device and enter registration activation process.
③ Input user name, password. Confirm password, cell phone number or email to obtain verification code. Then input the code to submit registration.
④ Account registered successfully, it will take 5 seconds to bind the device.
⑤ Successful registration, enter the system.
Registered user (who has registered Lonsdor products before)
① For the first use, please prepare a registered call phone or email to help complete
③ Input your registered mobile number or email, password to obtain verification code.
Then input the code to submit login.
④ Account login succeeded, it will take 5 seconds to bind the device.
In addition, users who have already registered Lonsdor’s product can directly choose
[registered user] to activate account.
1pc x Lonsdor KH100 Hand-Held Remote/Smart Key Programmer
