Description

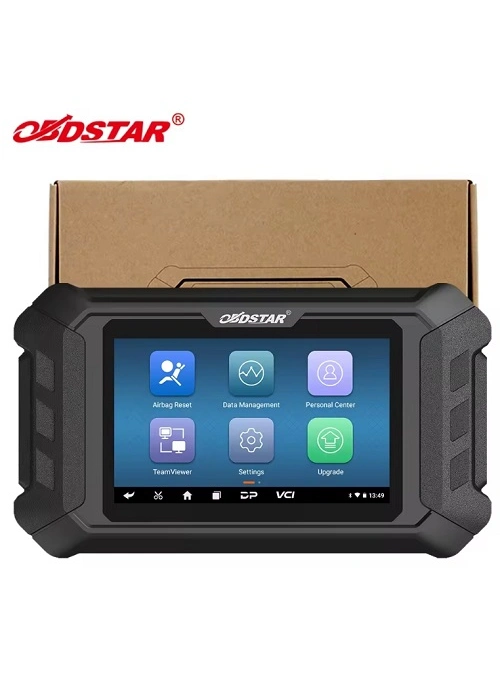

The OBDSTAR P50 is the latest generation of intelligent airbag reset and ECU diagnostic equipment from OBDSTAR Technology Co., Ltd. It delivers fast, precise, and comprehensive ECU diagnostics with wide vehicle coverage, supporting 93 brands including Tesla, and over 13,900 ECU part numbers. Its advanced functions also cover MCU types, SAS reset, and battery reset for Audi and Volvo in bench mode.
Powered by an RK3128 Quad-Core processor and a 5-inch capacitive touch screen, P50 ensures smooth, responsive operation for professional workshops and automotive repair specialists.
Key Features:
Basic Functions:
- One-click airbag reset for 93 brands and 13,900+ ECU part numbers
- Fuzzy search for ECU part numbers for faster operations
- Clear bench mode wiring diagrams included
- Detailed fault code descriptions for accurate diagnostics
- Free updates for 1 year; $150/year thereafter ($90 if renewed before expiration)
- Supports Hyundai/Kia TC2XXX bench airbag reset with CAN FD adapter
- Battery reset for Audi and Volvo in bench mode
- Tesla bench airbag reset
- SAS (Steering Angle Sensor) reset function
- Additional functions under development
Advanced Functions:
- Read ECU information: part number, historical/current frame number, collision record
- Read, erase, and backup DTC codes
- Read/write EEPROM and FLASH data
- Write VIN after crash data clear
- Clear/erase ECU crash data
- Unlock ECU
P004 Adapter Highlights:
- Stable ECU communication regardless of 12V power
- Turn on/off 120Ω CAN BUS resistance at any time
- Supports 6&14 and 3&11 CAN BUS protocols, GM Single CAN, and K-line
- Optional CAN FD adapter for newer models (post-2020 Hyundai/Kia, etc.)
- DB15 connector for flexible OBDII-16 I/O interface wiring
Vehicle & ECU Coverage:
- 93 brands including ACURA, TESLA, AUDI, BMW, BENZ, FORD, TOYOTA, HYUNDAI, VOLVO, LANDROVER, PORSCHE, and more
- Over 13,900 ECU part numbers, supporting fuzzy search
- MCU types supported: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570
- Bench airbag reset support for Tesla
- SAS reset support for Toyota
- Battery reset support for Audi and Volvo
Usage Instructions:
- Register the device (Distributor code: 0086A002)
- Read ECU part number
- Read fault codes
- Clear fault codes (direct or via EEPROM backup if supported)
- Clear collision records
- Write VIN if applicable
- Recheck fault codes to confirm successful reset
Note:
ECU part numbers marked as DIAG ONLY can only read codes, not clear crash data
ECU part numbers marked as PARTIALLY/BETA may fail; this is not a quality issue
Package Includes:
- 1 × OBDSTAR P50 Main Unit
- 1 × P004 Adapter
- 1 × Charger
- 1 × Configuration List
- 1 × Packing Box
Function Display:
1. The main page after registration：
2. Functions:
1) Airbag Reset:
2) Battery Reset:
3) SAS Reset:
3. Demo（VOLVO TMS570)：
Some Updates:
Add TOYOTA R7F7016443, R7F7016843Â 2023-07-25
Work with CAN FD adapter.
Airbag Reset V30.34 –2023-02-28
Working with CAN FD Adapter
Airbag Reset V30.32 –2022-12-28
Add Hyundai/ Kia airbag reset, working with CAN FD Adapter
