Description
The TNM5000 by TNM Electronics is a powerful, high-performance universal programmer designed for professional electronics repair, automotive ECU work, and advanced chip programming. Built around a 500,000-gate FPGA core running at 96 MHz, it delivers extremely fast read/write speeds while supporting more than 23,000 devices across multiple memory and microcontroller families.
Latest Update (Version 10.18)
- Added secured (locked) Renesas RL78 chip reading used in modern car tachometers.
- Previously available only as a paid option in other tools — now included FREE for TNM5000 users.
- Access via:
MCU → Renesas → Select R5F10 (EEPROM) - Strong support for automotive dashboard and ECU electronics repair.
Multi-Language Software Support
TNM5000 software is available in:
English • Russian • Arabic • French • Polish • Turkish • Persian • Magyar • Chinese
Key Selling Points
- Modern Ultra-Fast Universal Programmer – Ideal for general electronics and vehicle module repair.
- 23,000+ Supported Devices via cable and 48-pin ZIF socket.
- Programs EPROM, EEPROM, FLASH, NAND, and many MCU families.
- Supports GAL / CPLD / FPGA programming and SRAM / TTL / CMOS testing.
- Pin-Detect Technology alerts if any IC pin is not properly connected.
- No External Power Supply Needed – Powered directly by USB.
- Designed specifically for ECU, dashboard, and immobilizer electronics servicing.

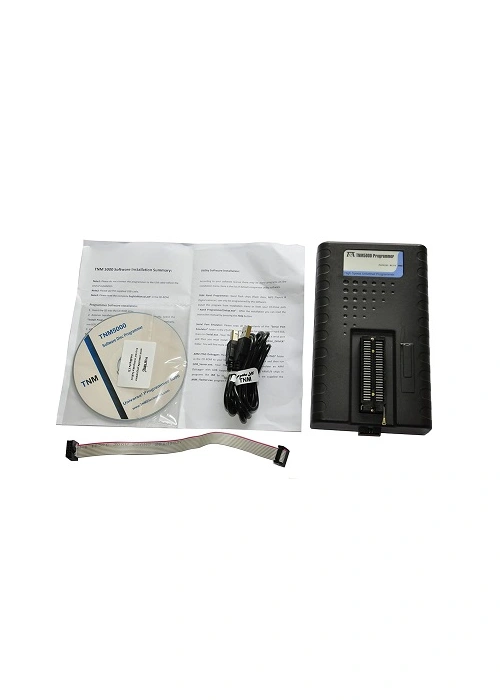

Hardware Features
| Feature | Details |
|---|---|
| 48-Pin ZIF Socket | Built-in continuity tester |
| ISP/JTAG Connector | 10-pin interface |
| USB 2.0 High-Speed | Fast communication |
| Programming Speed | 1 Gbit NAND < 50 sec |
| Serial Flash Read Speed | Up to 6 Mbit/sec |
| Core Architecture | FPGA + Embedded CPU |
| Multi-Programmer Mode | Run multiple units on one PC |
Memory & Device Support
Supports 23,000+ devices, including:
- Parallel Flash (up to 56 pins)
- NAND Flash (MLC correction algorithms included)
- Serial SPI Flash (8–16 pin)
- EPROM / EEPROM / NVRAM / FRAM
- CPLD / PLD / FPGA
- Microcontrollers & Automotive MCUs
Automatic device detection works even when chip markings are unreadable.
Automotive Electronics Capabilities
TNM5000 is widely used for:
- ECU microcontroller programming
- Dashboard processor repair
- Immobilizer module work
- Bosch / Valeo / Siemens ECU MCU support
- ST10F, TMS370, NEC, Motorola dashboard devices
- Infineon C167 ECU platforms
PLD / CPLD / FPGA Support
- Programs ALTERA devices via USB-Blaster emulation (Quartus compatible)
- Xilinx CPLD / FPGA configuration (JED / BIT files)
- GAL / PALCE unlocking supported
Software Features
- Works on Windows XP / Vista / 7 / 8 (32-bit & 64-bit)
- User-friendly interface with demo mode available
- Continuous updates with new devices and languages
- Allows multiple programmers connected to one PC
